PPM M 08462-73 - LOCK

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )

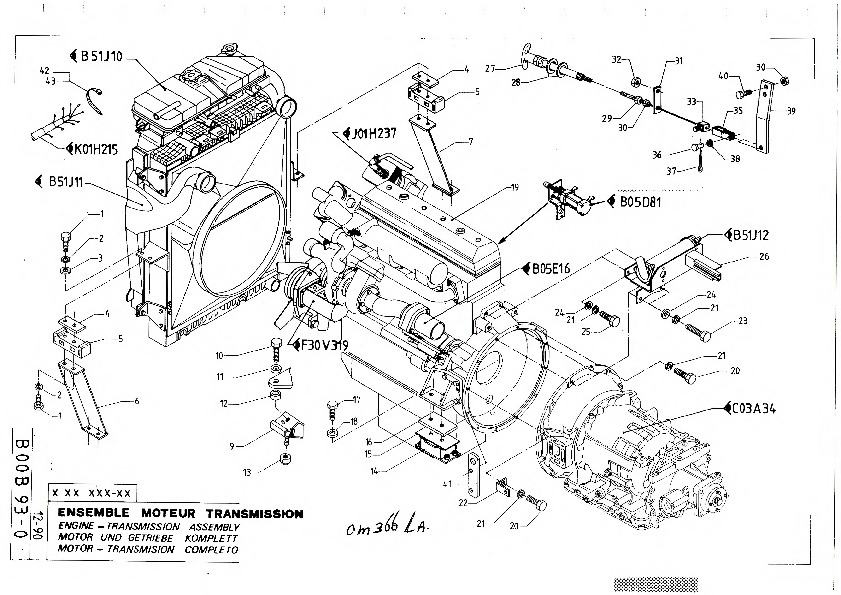

B00 B93-0 (PPM 280 ATT )

Also known as:
M 08462-73, M 0846273

Parts for PPM 280 ATT, Figure B00 B93-0:
Part Number M 08462-73: LOCK

Pos nr	Part number	Description
1	T 00338-27	BOLT
2	E 00347-11	WASHER
3	W 00350-03	RING
4	S 24229-28	PLATE
5	S 43414-96	SUPPORT
6	X 77282-05	SUPPORT
7	W 77282-04	SUPPORT
8	U 40432-57	PAN
9	J 45414-04	SUPPORT
10	Z 03338-67	BOLT
12	K 55287-26	SPACER
13	H 05345-27	NUT
14	D 43414-83	SUPPORT
15	F 36228-04	PLATE
16	U 24229-30	PLATE
17	X 00330-49	BOLT
18	P 01456-72	WASHER
19	B 40437-46	MOTOR
20	V 00338-29	BOLT
22	P 10256-52	PLATE
23	U 09338-18	BOLT
26	Q 77282-27	SUPPORT
27	N 26427-35	SLIDE
28	X 00350-04	WASHER
29	R 02296-01	LOCK
30	C 23345-48	NUT
31	Q 18228-56	PLATE
32	E 23345-50	NUT
33	M 08462-73	LOCK
35	A 03268-07	FORK
36	V 00500-21	PIN
37	X 00355-10	SPLIT MIN
38	M 02350-02	WASHER
39	E 26261-67	PLATE
40	H 00326-21	BOLT
41	W 29233-89	BRACKET
42	D 01369-22	COLLAR
43	P 02369-59	COLLAR
