PPM H 00338-17 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A39-10 (PPM 280 ATT )
B51 J11-0 (PPM 280 ATT )
D04 B15-5 (PPM 280 ATT FRONT AXLE ASSEMBLY)
D04 B16-3 (PPM 280 ATT REAR AXLE ASSEMBLY)
F30 V230-1 (PPM 280 ATT ELECTRO VALVE ASSEMBLY)
J02 A67-2 (PPM 280 ATT AXLE BRAKE VALVE)
K12 A46-0 (PPM 280 ATT ELECTRIC CIRCUIT - BOOM )
PM01 D76-0 (PPM 280 ATT )
PM01 D77-0 (PPM 280 ATT )
A00 AA19-0 (PPM 380 ATT BASIC MACHINE WITHOUR COWLING)
A00 AB19-0 (PPM 380 ATT EUROPE TYPE MACHINE)
A00 AC19-0 (PPM 380 ATT OVERSEA TYPE MACHINE)
A00 AD19-0 (PPM 380 ATT FRANCE TYPE MACHINE)
D04 B47-1 (PPM 380 ATT REAR AXLE ASSEMBLY)
D07 A33-0 (PPM 380 ATT OPTION WHEELS 20.5 X 25)
F30 B90-0 (PPM 380 ATT TANK - PUMP HYDRAULIC CIRCUIT)
HR40 A02-0 (PPM 380 ATT HYDRAULIC TANK)
K12 A46-0 (PPM 380 ATT ELECTRIC CIRCUIT BOOM)
A00 AA23-0 (PPM 480 ATT BASIC MACHINE WITHOUT COWLING)

Also known as:
H 00338-17 , H 0033817

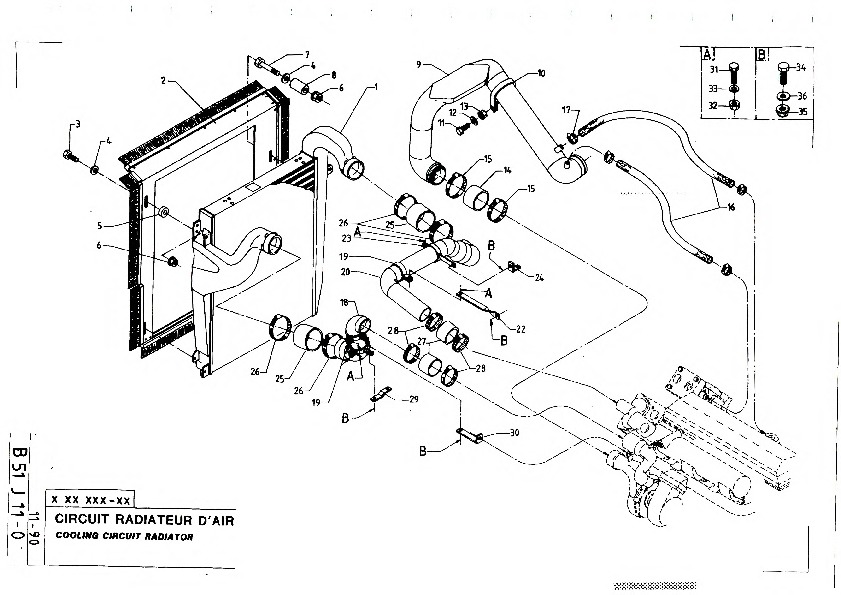

Parts for PPM 280 ATT, Figure B51 J11-0:
Part Number H 00338-17 : BOLT

Pos nr	Part number	Description
1	V 40432-58	COOLER
2	K 45414-05	PROTECTOR
3	H 00338-17	BOLT
4	V 00350-02	WASHER
5	Q 04454-09	WASHER
6	D 23345-49	NUT
7	T 01338-31	BOLT
8	F 24285-29	SPACER
9	J 41501-74	PIPE
10	M 34369-93	COLLAR
11	E 00338-14	BOLT
14	A 77319-10	SLEEVE
15	Q 34369-96	CLAMP COLLAR
16	D 00318-35	HOSE
17	Q 23369-06	COLLAR
18	D 41501-69	PIPE
19	L 34369-92	COLLAR
20	C 41501-68	PIPE
22	F 26261-68	PLATE
23	K 34369-91	COLLAR
24	K 56256-02	PLATE
25	E 77319-14	SLEE VE
27	F 77319-15	SLEEVE
28	R 34369-97	COLLAR
29	G 26261-69	PLATE
30	K 34256-52	BRACKET
31	Z 00338-09	BOLT
32	C 23345-48	NUT
33	U 00350-01	WASHER
