Figures in which the part appears:
HJ2X6 A21-0 (PPM 280 ATT TELESCOPING CYLINDER MOUNTING)
PM01 D76-0 (PPM 280 ATT )
PM01 D77-0 (PPM 280 ATT )
PM08 A120-1 (PPM 280 ATT ELEMENT 2 ASSEMBLY )
PM08 A121-1 (PPM 280 ATT ELEMENT 3 ASSEMBLY )
HJ2X7 B23-0 (PPM 380 ATT TELE CYLINDER MOUNTING)
PM01 D58-0 (PPM 380 ATT LATTICE EXTENSION OPTION 7,5 MTR.)
PM01 D59-0 (PPM 380 ATT LATTICE EXTENSION OPTION 7,5-12,5 MTR.)
PM08 A104-0 (PPM 380 ATT P3 BOOM SECTION)
PM08 A113-0 (PPM 380 ATT P2 BOOM SECTION)
PM01 D76-0 (PPM 280 ATT )
PM01 D77-0 (PPM 280 ATT )
PM08 A120-1 (PPM 280 ATT ELEMENT 2 ASSEMBLY )
PM08 A121-1 (PPM 280 ATT ELEMENT 3 ASSEMBLY )
HJ2X7 B23-0 (PPM 380 ATT TELE CYLINDER MOUNTING)
PM01 D58-0 (PPM 380 ATT LATTICE EXTENSION OPTION 7,5 MTR.)
PM01 D59-0 (PPM 380 ATT LATTICE EXTENSION OPTION 7,5-12,5 MTR.)
PM08 A104-0 (PPM 380 ATT P3 BOOM SECTION)
PM08 A113-0 (PPM 380 ATT P2 BOOM SECTION)
Also known as:
V 02398-17, V 0239817
V 02398-17, V 0239817

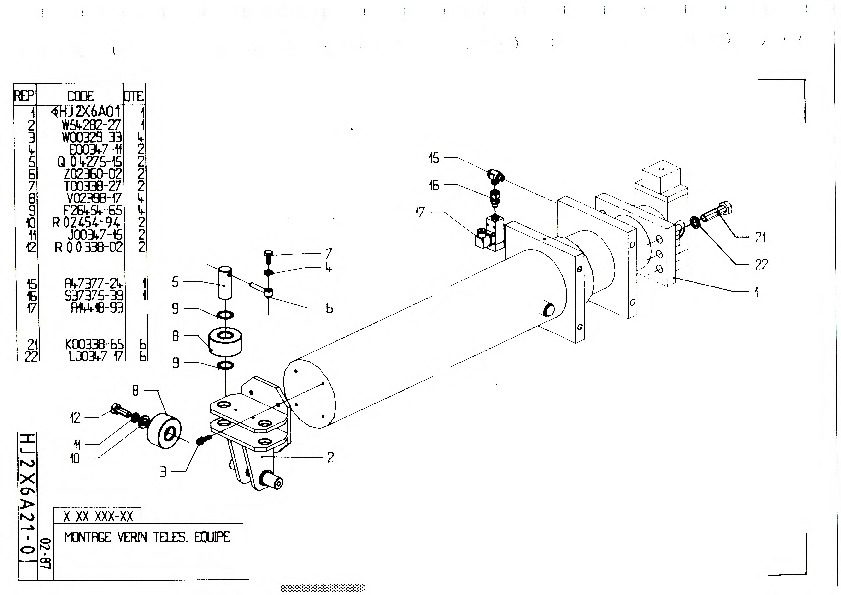

Parts for PPM 280 ATT, Figure HJ2X6 A21-0:
Part Number V 02398-17: BEARING
Part Number V 02398-17: BEARING
| Pos nr | Part number | Description |
|---|---|---|
| 1 | HJ2X6A01 | |
| 2 | W 54282-27 | END FITTING |
| 3 | W 00329-33 | BOLT |
| 4 | E 00329-33 | RING |
| 5 | Q 04275-15 | PIN |
| 6 | Z 02360-02 | SPLIT PIN |
| 7 | T 00338-27 | BOLT |
| 8 | V 02398-17 | BEARING |
| 9 | F 26454-65 | RING |
| 10 | R 02454-94 | RING |
| 11 | J 00347-15 | WASHER SLING |
| 12 | R 00338-02 | BOLT |
| 15 | A 47377-24 | RACCORD ORIENT |
| 16 | S 37375-39 | UNION |
| 17 | A 14418-93 | MANOCONTACT |
| 21 | K 00338-65 | BOLT |
| 22 | L 00347-17 | WASHER |
