PPM D 24414-07 - SUNSHADE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A69-2 (PPM 280 ATT )
A01 A68-1 (PPM 380 ATT CAB)
A01 A69-1 (PPM 380 ATT CAB)

Also known as:
D 24414-07, D 2441407

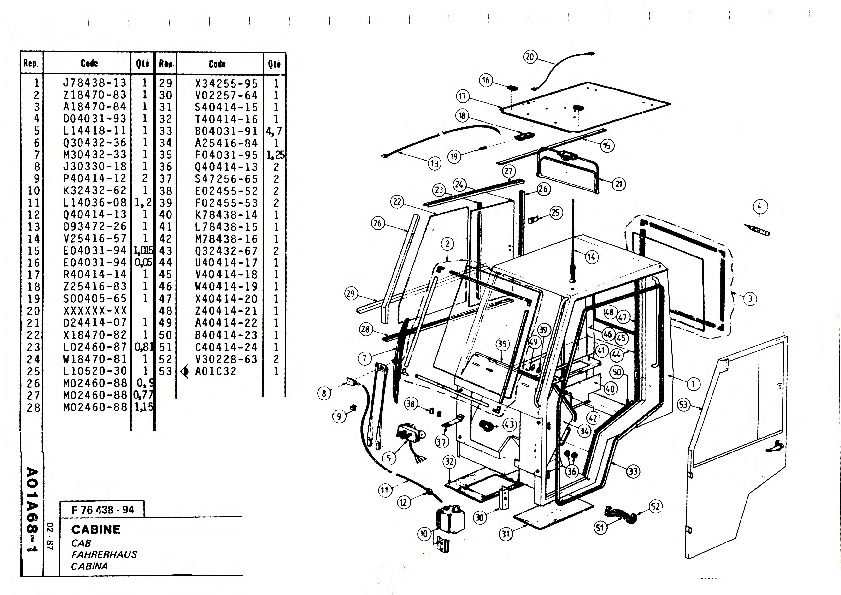

Parts for PPM 380 ATT, Figure A01 A68-1:
Part Number D 24414-07: SUNSHADE

Pos nr	Part number	Description
1	J 78438-13
2	Z 18470-83	WINDSCREEN
3	A 18470-84	WINDOW
4	D 04031-93	SEAL
5	L 14418-11	ASSY
6	Q 30432-36	ASSY
7	M 30432-33	BALAIS D
8	J 30330-18
9	P 40414-12	CLAMP
10	K 32432-62
11	L 14036-08	HOSE
12	Q 40414-13	GUIDE
13	D 93472-26
14	V 25416-57	ANTENNA
15	E 04031-94	SEAL
17	R 40414-14
18	Z 25416-83
19	S 00405-65	BULB
20	X XXXXX-X
21	D 24414-07	SUNSHADE
22	X 18470-82	WINDOW
23	L 02460-87
24	W 18470-81	WINDOW
25	L 10520-30	LOCK
26	M 02460-88	SLIPPER
29	X 34255-95	ANGLE IRON
30	V 02257-64
31	S 40414-15
32	T 40414-16
33	B 04031-91	SEAL
34	A 25416-84
35	F 04031-95
37	S 47256-65
38	E 02455-52
39	F 02455-53
40	K 78328-14
41	L 78438-15
42	M 78438-16
43	Q 32432-67	DIFFUSER
44	U 40414-17
45	V 40414-18
46	W 40414-19
47	X 40414-20
48	Z 40414-21
49	A 40414-22
50	B 40414-23
51	C 40414-24	STRAP
52	V 30228-63	PLATE
