Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
S 22461-27 , S 2246127
S 22461-27 , S 2246127

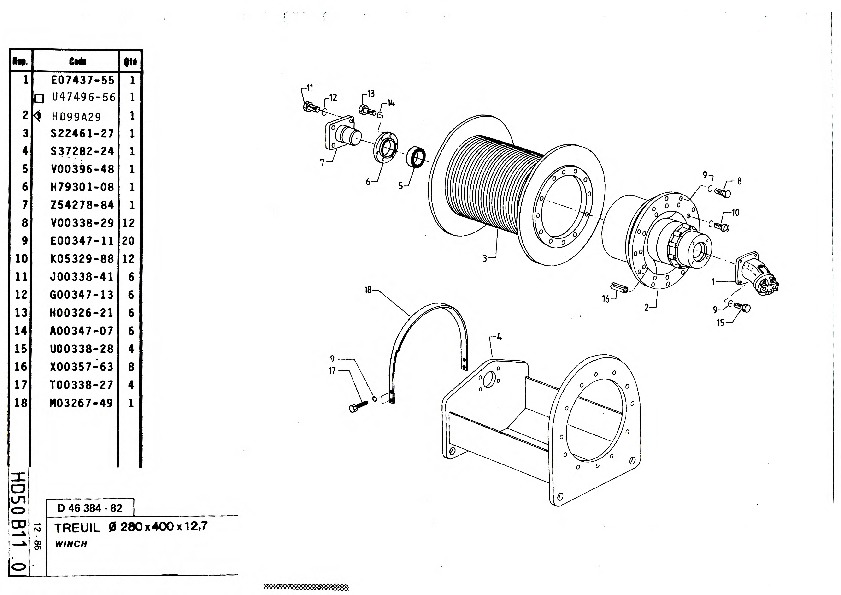

Parts for PPM 380 ATT, Figure HD50 B11-0:
Part Number S 22461-27 : DRUM
Part Number S 22461-27 : DRUM
| Pos nr | Part number | Description |
|---|---|---|
| D 46384-82 | ||
| 1 | E 07437-55 | |
| 1A | U 47496-56 | SET |
| 3 | S 22461-27 | DRUM |
| 4 | S 37282-24 | |
| 5 | V 00396-48 | BEARING |
| 6 | H 79301-08 | |
| 7 | Z 54278-84 | TRUNNION |
| 8 | V 00338-29 | BOLT |
| 9 | E 00347-11 | WASHER |
| 10 | K 05329-88 | |
| 11 | J 00338-41 | BOLT |
| 12 | G 00347-13 | WASHER |
| 13 | H 00326-21 | BOLT |
| 14 | A 00347-07 | WASHER |
| 15 | U 00338-28 | SCREW |
| 16 | X 00357-63 | MECANINDUS PIN |
| 17 | T 00338-27 | BOLT |
| 18 | M 03267-49 |
