Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
K12 A47-0 (PPM 280 ATT LIGHTS SUPPORT ASSEMBLY )
PM02 D23-1 (PPM 280 ATT )
K12 A47-0 (PPM 380 ATT SUPPORT)
PM02 D23-1 (PPM 380 ATT LATTICE ELEMENT 7,5 MTR.)
PM02 D23-1 (PPM 280 ATT )
K12 A47-0 (PPM 380 ATT SUPPORT)
PM02 D23-1 (PPM 380 ATT LATTICE ELEMENT 7,5 MTR.)
Also known as:
F 02369-97, F 0236997
F 02369-97, F 0236997

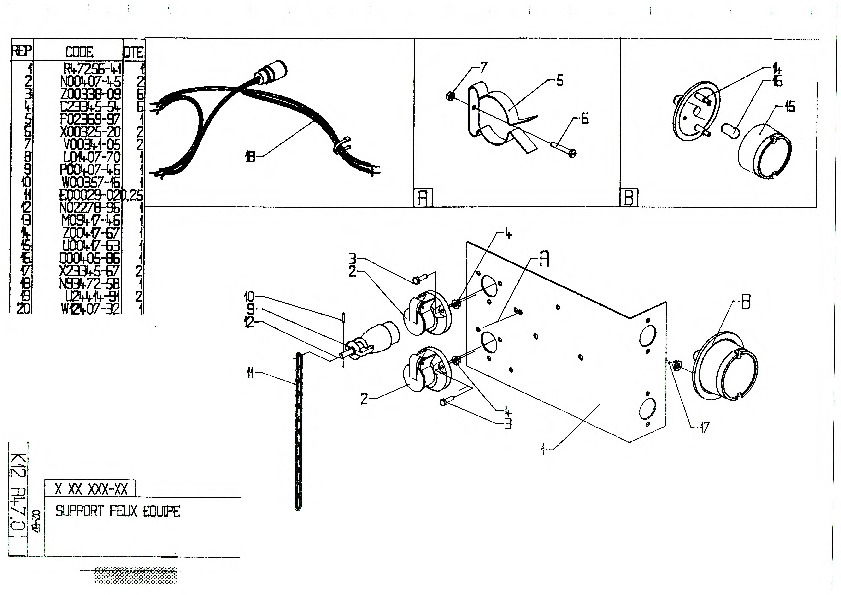

Parts for PPM 380 ATT, Figure K12 A47-0:
Part Number F 02369-97: COLLAR
Part Number F 02369-97: COLLAR
| Pos nr | Part number | Description |
|---|---|---|
| 1 | R 47256-41 | |
| 2 | N 00407-45 | SOCKET |
| 3 | Z 00338-09 | BOLT |
| 4 | C 23345-54 | |
| 5 | F 02369-97 | COLLAR |
| 6 | X 00325-20 | SCREW |
| 7 | V 00341-05 | NUT |
| 8 | L 01407-70 | |
| 9 | P 00407-46 | CONNECTOR |
| 10 | W 00357-16 | MECANINDUS PIN |
| 11 | E 00029-02 | CHAIN |
| 12 | N 02278-96 | PIN |
| 13 | M 09417-46 | PLATE |
| 14 | Z 00417-67 | SOCKET |
| 15 | U 00417-63 | LENS |
| 16 | Q 00405-86 | BULB |
| 17 | X 23345-67 | NUT |
| 18 | N 93472-58 | |
| 19 | U 24414-91 | SLEEVE |
| 20 | W 12407-32 | SOCKET |
