PPM X 23345-67 - NUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A39-10 (PPM 280 ATT )
A05 A83-3 (PPM 280 ATT )
J02 A67-2 (PPM 280 ATT AXLE BRAKE VALVE)
K12 A46-0 (PPM 280 ATT ELECTRIC CIRCUIT - BOOM )
K12 A47-0 (PPM 280 ATT LIGHTS SUPPORT ASSEMBLY )
A00 AF19-0 (PPM 380 ATT GERMANY TYPE MACHINE)
J01 H215-0 (PPM 380 ATT AIR CIRCUIT ( CARRIER ENSLAVEMENT ))
K09 A318-0 (PPM 380 ATT PANEL PLATE)
K12 A46-0 (PPM 380 ATT ELECTRIC CIRCUIT BOOM)
K12 A47-0 (PPM 380 ATT SUPPORT)
PM14 C17-0 (PPM 380 ATT OPTION CEC)

Also known as:
X 23345-67, X 2334567

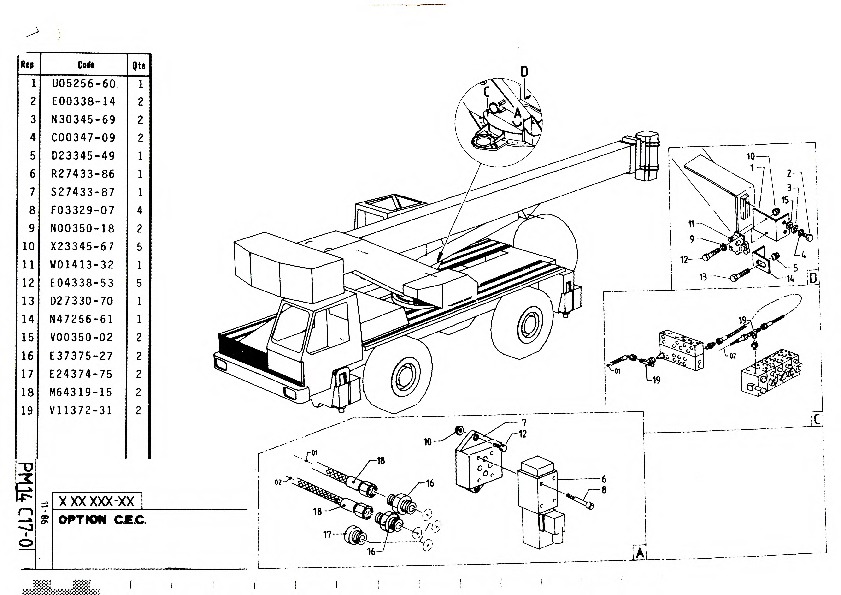

Parts for PPM 380 ATT, Figure PM14 C17-0:
Part Number X 23345-67: NUT

Pos nr	Part number	Description
1	U 05256-60
2	E 00338-14	BOLT
3	N 30345-69
4	C 00347-09	WASHER
5	D 23345-49	NUT
6	R 27433-86	ELECTRO DISTRI
7	S 27433-87	SOCKET
8	F 03329-07	BOLT
9	N 00350-18	WASHER
10	X 23345-67	NUT
11	W 01413-32	LOWER LOAD HOOK
12	E 04338-53	SCREW
13	D 27330-70	BOLT
14	N 47256-61
15	V 00350-02	WASHER
16	E 24374-75	PLUG
18	M 64319-15	HOSE
19	V 11372-31	T PIECE
