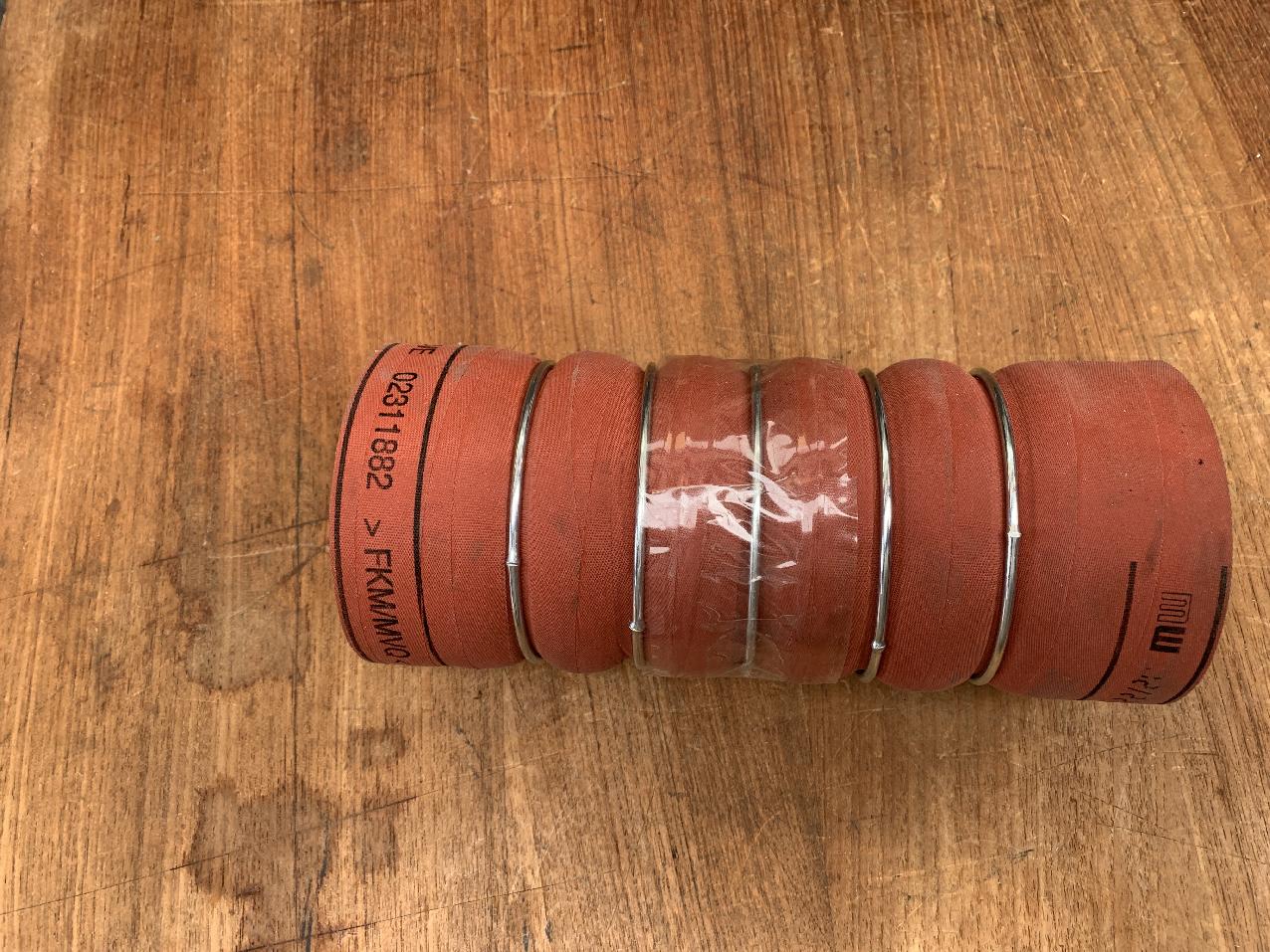

Grove 2311882 - CONCERTINA HOSE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2311882, 02311882, 002311882

Parts for Grove GMK 5170, Figure 3108886-ETL:
Part Number 2311882: CONCERTINA HOSE

Pos nr	Part number	Description	Weight in kg
1	3067235	COOLING MODULE ASSEMBLY
3	3041458	FLUID RESERVOIR	6.700
4	2311882	CONCERTINA HOSE	0.33
5	2311884	HOSE	0.61
6	2311885	SHAPED HOSE	1
7	1207350	HOSE 10 X 3,5 (PER METER)	0.067
8	3041721	HOSE	0.2
9	3041722	HOSE	0.5
10	0437181	HEXAGON SCREW M10X20	0.022
11	1368030	WASHER M10	0.005
13	2311892	RUBBER BUFFER	0.03
14	2311893	WASHER
15	2311894	SPACER PIPE
16	1147828	HEXAGON BOLT
17	1373340	HEXAGON SOCKET HEAD CAP SCREW
18	2311895	RUBBER BUFFER	0.09
19	2311896	HOLDER
20	0103190	HEXAGON SCREW	0.015
21	1927803	HEXAGON NUT
22	2318223	HOSE CLAMP	0.26
23	1925396	HOSE CLAMP	0.04
24	2217173	HOSE CLAMP	0.03
25	1925393	HOSE CLAMP	0.025
26	2210786	HOSE
27	2210794	HOSE	0.561
28	2312101	SHAPED HOSE	1.7
29	2217171	HOSE CLAMP	0.026
30	1682493	COCK	3
31	2256294	CONNECTION NOZZLE
32	3056414	CONNECTION NOZZLE
33	1571479	CLAMP (PAIR) WITH SCREWS
34	1571750	SUPPORT RAIL NUT	0.030
35	3041596	WASHER
36	1370136	CONNECTING PIPE	0.05
37	3041872	COOLING WATER ELBOW	0.04
38	2316876	HOSE (METER WARE)	0.4
39	3108919	PIPE GROUP
40	2250889	HOSE	0.445
42	1686701	WASHER M8	0.005
43	0437743	HEXAGON NUT M8	0.0
44	1146969	HEXAGON SOCKET HEAD CAP SCREW	0.1
45	1147796	HEXAGON SOCKET HEAD CAP SCREW	0.01
46	1925033	WASHER 6	0.005
47	0437742	HEXAGON NUT M6	0.005
48	3108920	HOLDER
