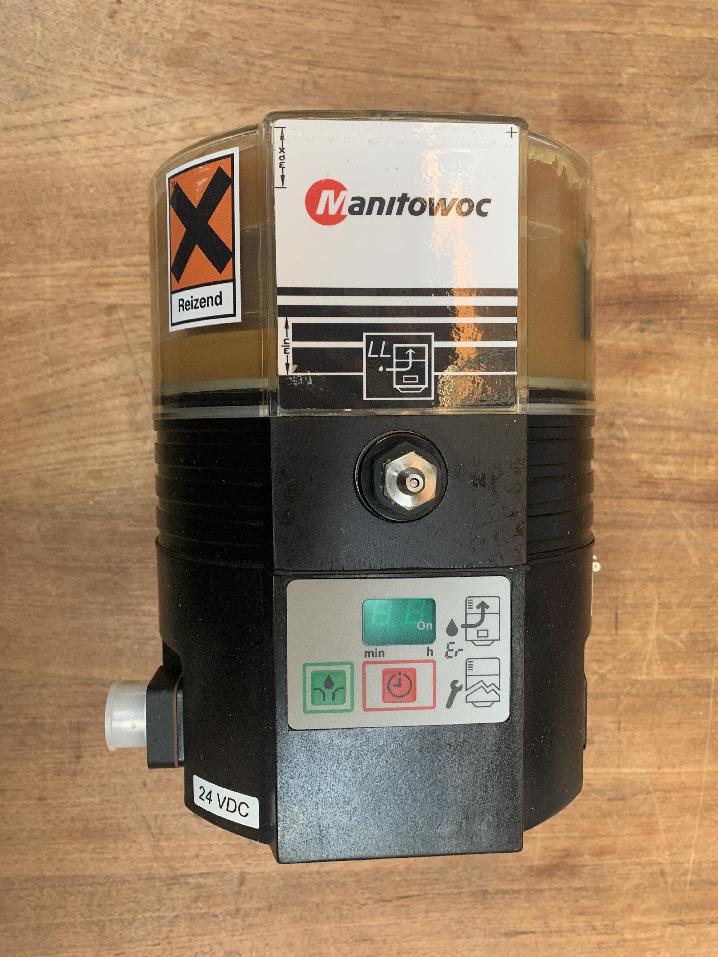

Grove 3328104 - CENTRAL LUBRICATION PUMP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3328104, 03328104, 003328104

Parts for Grove GMK 5170, Figure 3109573-ETL:
Part Number 3328104: CENTRAL LUBRICATION PUMP

Pos nr	Part number	Description	Weight in kg
11	3328104	CENTRAL LUBRICATION PUMP	8.510
12	1146762	HEXAGON SCREW M8X35	0.19
13	0437642	HEXAGON NUT M8	0.003
14	0436163	SPRING WASHER	0.005
16	2311779	VALVE BODY	0.02
17	2314975	LUBRICANT HOSE (L=2200)
18	3046814	LUBRICATION HOSE	0.001
19	3321117	LUBRICATION HOSE
20	2318802	LUBRICANT HOSE (L=3300)
21	3328112	LUBRICANT HOSE (L=5600)
22	2251403	EXTENSION PIECE	0.01
23	3328108	ANGLE MALE COUPLING	0.015
24	1370356	LUBRICANT DISTRIBUTOR	0.980
25	1577435	HEXAGON BOLT
26	1146676	SPRING WASHER	0.005
27	3317526	LUBRICANT HOSE (L=380)
28	3317606	LUBRICATION HOSE (L=950)	0.001
29	3317603	LUBRICATION HOSE (L=5800)	0.405
30	3328109	LUBRICANT HOSE (L=5700)	0.39
31	2256401	LUBRICATING HOSE
32	3321114	LUBRICANT HOSE (L=2600)
33	3328111	LUBRICANT HOSE (L=2750)
34	3327173	ANGLE MALE COUPLING	0.16
35	3328110	PLUG SCREW COUPLING	0.01
