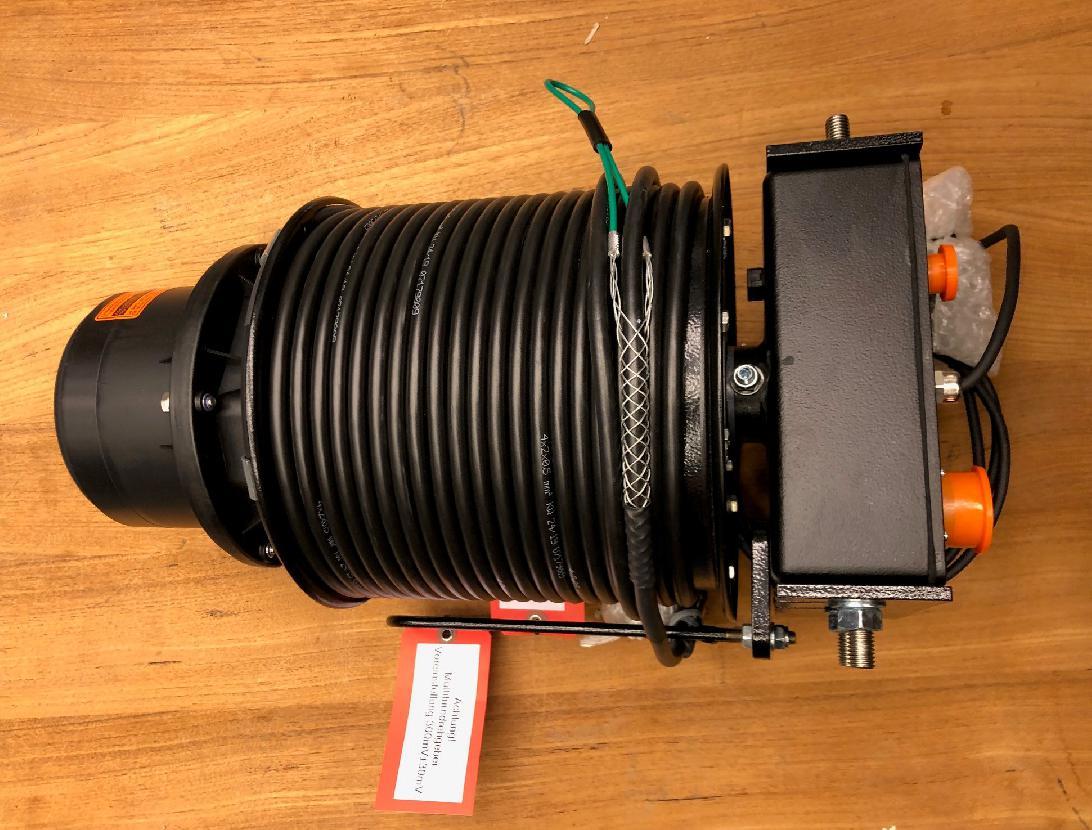

Grove 3136138 - CABLE DRUM WITH RELEASE SPRING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3136138, 03136138, 003136138

Parts for Grove GMK 5170, Figure 3155917-ETL:
Part Number 3136138: CABLE DRUM WITH RELEASE SPRING

Pos nr	Part number	Description	Weight in kg
1	3136138	CABLE DRUM WITH RELEASE SPRING	20
3	2318055	POTENTIOMETER	0.021
6	3053175	CABLE HARNESS	0.390
8	3054949	HOLDING
10	3041586	PLUG BOX	0.02
11	1573460	PLUG BOX	0.600
12	1573458	PLUG	0.160
16	1576520	SEAL	0.1
17	1573449	SEAL	0.005
71	1374637	HEXAGON SOCKET HEAD CAP SCREW	0.005
72	1374338	SPRING WASHER	0.001
73	0437644	HEXAGON NUT M12	0.084
74	3046056	WASHER 12	0.020
