Grove 3036475

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3036475, 03036475, 003036475

Parts for Grove GMK 2035, Figure 3036212-ETL:

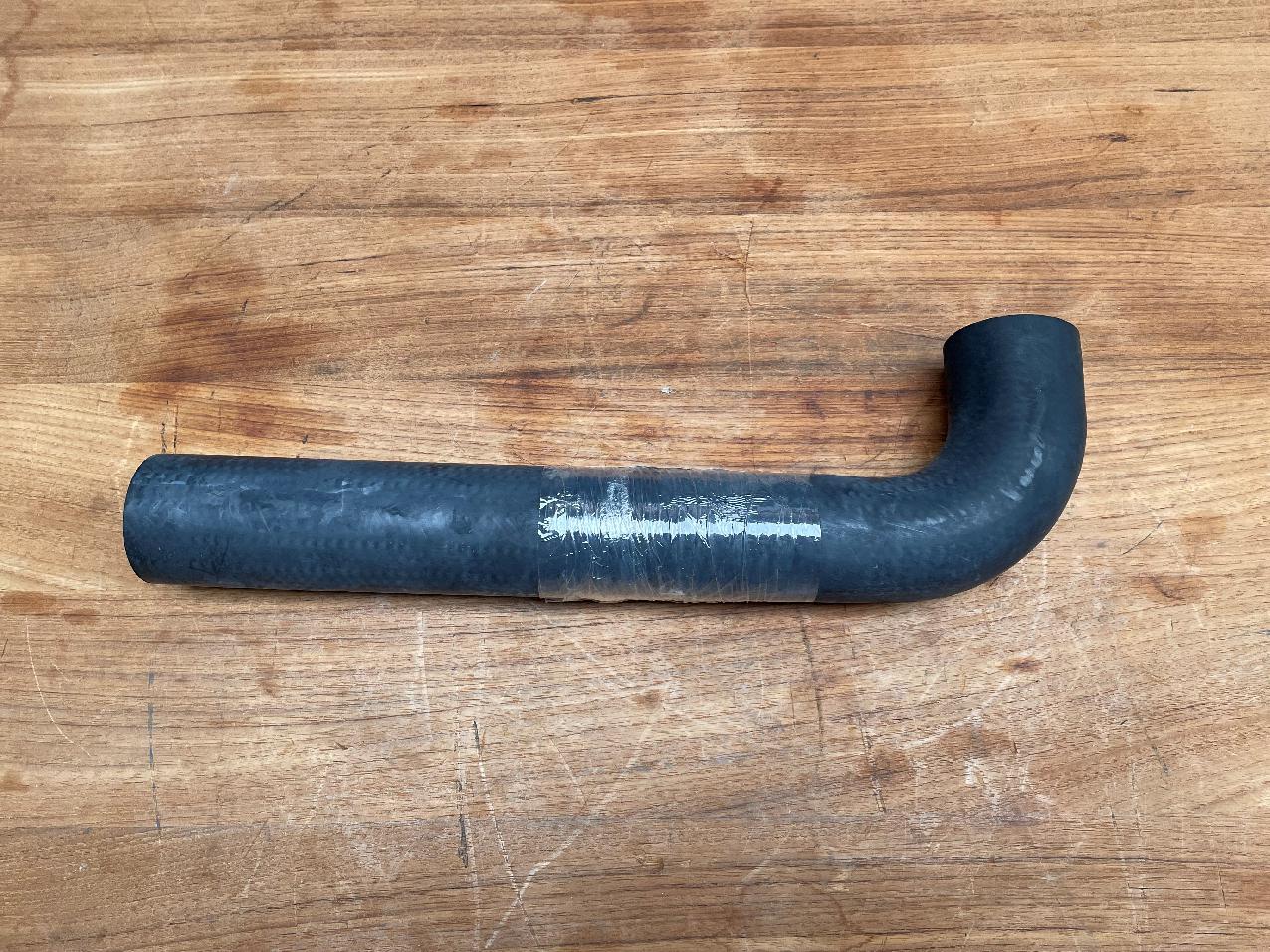

Part Number 3036475: HOSE

Pos nr	Part number	Description	Weight in kg
1	2311877	COOLING MODULE
1.01	3046146	RADIATOR, LARGE	8.740
1.02	3046147	RADIATOR, SMALL	5.5
1.03	3046148	RADIATOR SECTION	32
1.04	3046149	HOSE	0.405
1.06	3046150	HOSE	0.001
1.08	3046153	SCREW PLUG	0.006
2	2311878	VENTILATOR COVER	0.909
3	3041458	FLUID RESERVOIR	6.700
3.01	3046594	SCREW PLUG	0.04
3.02	3046595	BAYONET SOCKET	0.200
3.03	3046596	WIRE
3.04	3046597	LEAD SEAL	0.005
7	2311882	CONCERTINA HOSE	0.33
10	2311885	SHAPED HOSE	1
12	3317838	HOSE
13	2318424	HOSE ELBOW
17	2311892	RUBBER BUFFER	0.03
18	2311893	WASHER
19	2311894	SPACER PIPE
22	2311895	RUBBER BUFFER	0.09
23	3036446	HOLDER
32	2314001	HEAT EXCHANGER
35	3036233	COOLER WATER TUBE
36	3036234	COOLER WATER TUBE
37	3036444	HOLDER LEFT
38	3036445	HOLDER RIGHT
46	1207752	HOSE 12 X 3,5 (METERWARE)	0.16
50	1374557	SHAPED HOSE	0.580
51	3036475	HOSE	0.800
55	3036452	MOUNTING
56	3036513	MOUNTING
57	3036820	MOUNTING
58	3036473	SPACER PLATE
60	3036512	COOLER WATER TUBE
62	3036463	COOLER WATER TUBE
67	3055636	SUPPORT
77	3046601	VENT PLUG
80	3036538	AIR BAFFLE PLATE
81	3036539	AIR BAFFLE PLATE
82	3036540	AIR BAFFLE PLATE
83	3036541	AIR BAFFLE PLATE
84	3036542	AIR BAFFLE PLATE
85	0438026	FILLING AND DRAINING COCK	0.32
86	3007030	SEAL
