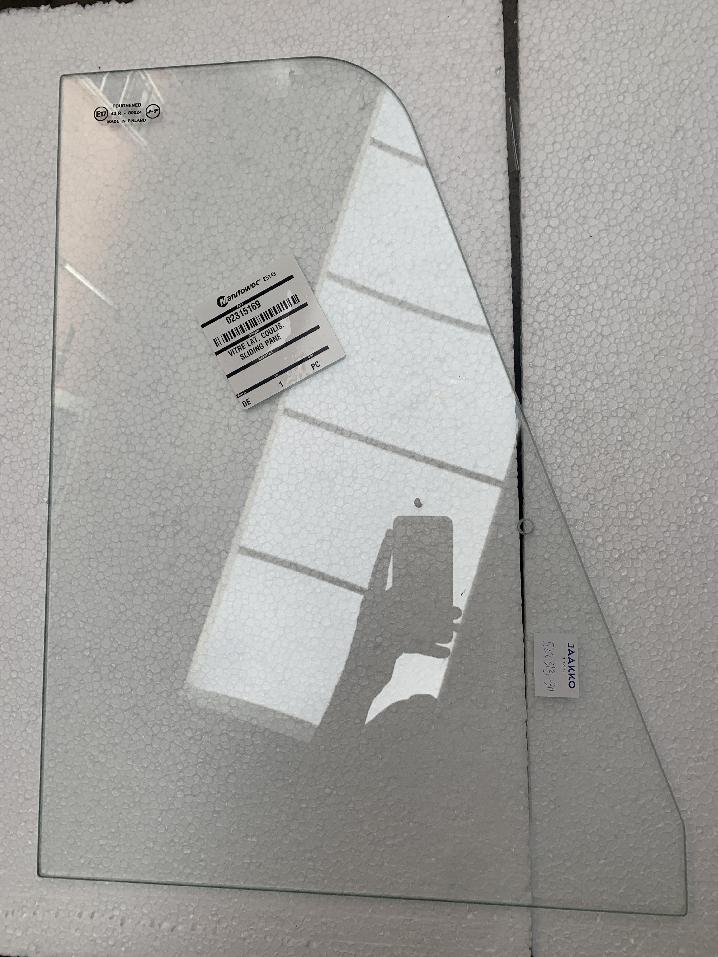

Grove 2315169 - SLIDING WINDOW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2315169, 02315169, 002315169

Parts for Grove GMK 5100, Figure 2304134-ETL:
Part Number 2315169: SLIDING WINDOW

Pos nr	Part number	Description	Weight in kg
6	2313363	RAILS	0.280
8	2288165	LOCK MOUNTING PIECE	0.13
9	2256914	COVER	0.18
10	2256915	RAIL	1.5
11	2288176	LOCK BOLT	0.160
12	3011279	LOCK BOLT	0.15
13	1682290	PIN	0.010
14	1574958	GROOVED BALL BEARING	0.026
15	0028189	RETAINING RING
16	2256917	SLIDING WINDOW	28.4
16	2315167	FIXED WINDOW	1.975
16	2315168	FIXED WINDOW	3
16	2315169	SLIDING WINDOW	2.100
17	1678463	CLAMPING STRIP (YARD GOOD)	0.5
18	0552253	FILLER-PROFILE STRIP (YARD GOO	0.055
20	2256918	COVER	0.46
21	2256919	BRAICKET
22	0554836	GUIDE ROLLER	0.045
27	1370242	SEALING STRIP (METERWARE)	0.19
