Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3317760, 03317760, 003317760
3317760, 03317760, 003317760
Parts for Grove GMK 5100, Figure 3054011-ETL:

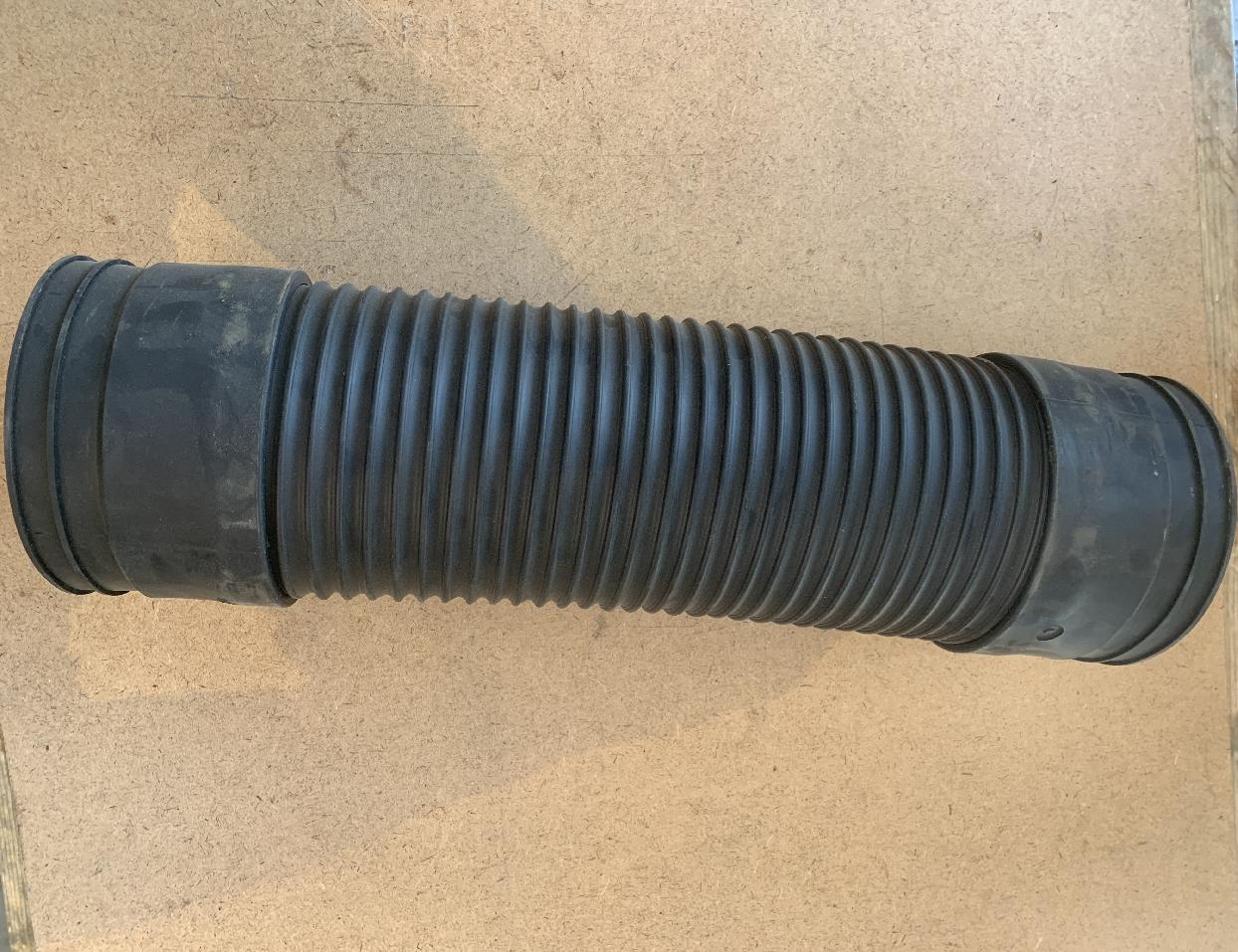

Part Number 3317760: HOSE
Part Number 3317760: HOSE
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 2 | 3046934 | RAIN CAP | 1.440 |
| 3 | 3046933 | MOUNTING PIECE | 0.600 |
| 4 | 3046248 | MAINTENANCE SWITCH | 0.180 |
| 5 | 3317760 | HOSE | 0.970 |
| 6 | 3320242 | HOSE | 3.900 |
| 7 | 3317451 | INTERMEDIATE PIPE | 3.350 |
| 8 | 3009074 | INTERMEDIATE PIPE | 2.574 |
| 11 | 3009078 | HOLDING PLATE | 0.250 |
| 12 | 3009082 | MOUNTING ANGLE | 0.001 |
| 13 | 3317827 | INTAKE HOSE | 0.430 |
| 17 | 3036379 | PIPE CLAMP | 0.726 |
