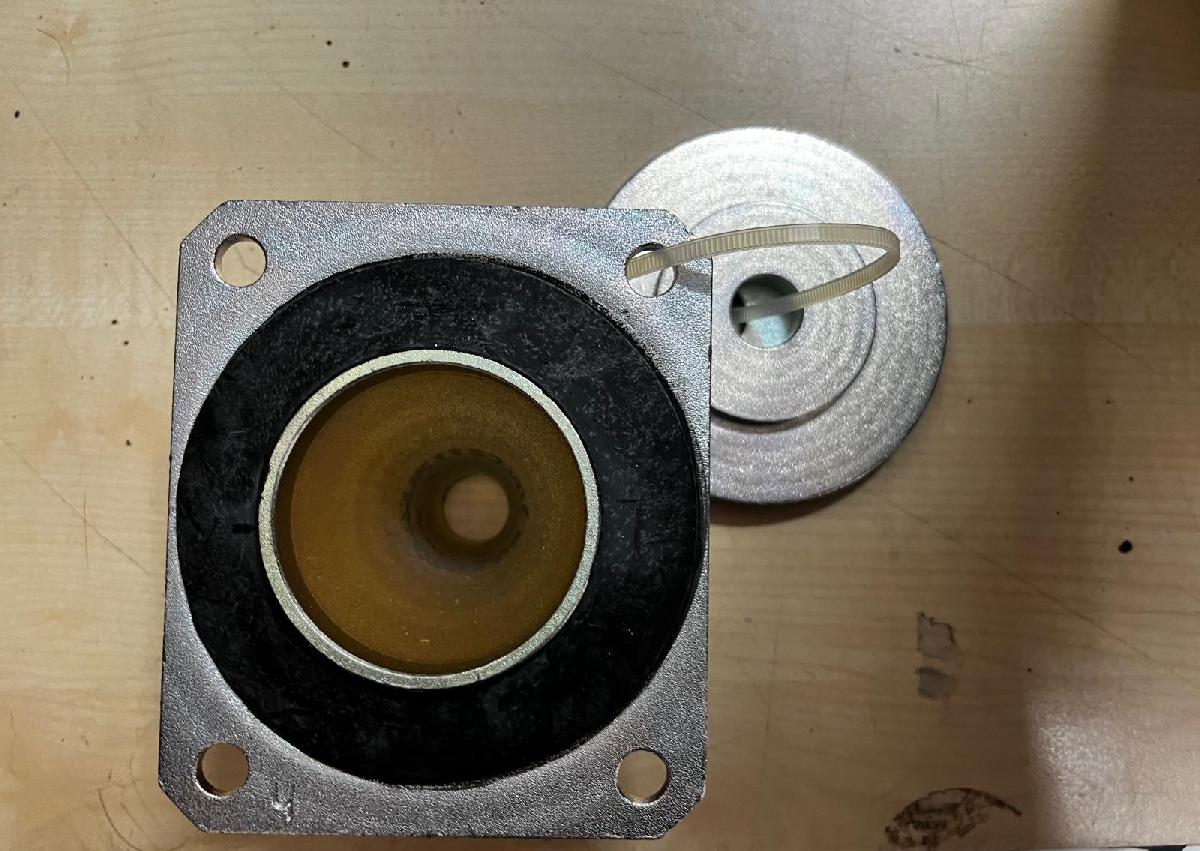

Grove 2315796 - MEGI-CONE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

3057554-ETL (Grove GMK 4075 )
4194445-ETL (Grove GMK 4080-3 )
3054009-ETL (Grove GMK 5095 )
3054009-ETL (Grove GMK 5100 )
3010612-ETL (Grove GMK 5180 )
3010612-ETL (Grove GMK 5200 )
3224163-ETL (Grove GMK 5250L )
3224169-ETL (Grove GMK 5250L )
3403996-ETL (Grove GMK 6400 )
GMK (Grove GMK )

Also known as:
2315796, 02315796, 002315796

Parts for Grove GMK 6400, Figure 3403996-ETL:
Part Number 2315796: MEGI-CONE

Pos nr	Part number	Description	Weight in kg
1	3139238	TRANSFER GEAR
2	2315796	MEGI-CONE	2.35
3	3121299	GEAR HOLDING
4	3433924	GEAR-HOLDING
5	3433726	PLATE
6	3121302	FASTENING PLATE
7	1930096	HEXAGON SOCKET HEAD CAP SCREW	0.1
8	0435874	HEXAGON SCREW
9	0436503	HEXAGON NUT	0.07
10	0437184	HEXAGON SCREW	0.030
11	0437744	HEXAGON NUT M10	0.014
12	0437204	HEXAGON SCREW	0.97
13	2256542	WASHER M16	0.010
14	0437190	HEXAGON SCREW M12X30	0.04
15	1682900	HEXAGON NUT	0.035
16	0118983	HEXAGON SCREW	0.096
17	1147799	HEXAGON SCREW
19	1681738	HEXAGON NUT	0.020
20	1686862	WASHER M12	0.006
21	0437193	HEXAGON SCREW M12X45	0.050
22	2315062	O-RING, 101,19 X 3,53	0.004
23	3459642	PLATE

* Selected parts are automatically added to your RFQ list *

2315796 Grove GMK 2035 MEGI-CONE
