Grove 9326100297

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9326100297, 09326100297, 009326100297

Parts for Grove AT 635, Figure 7326990030:

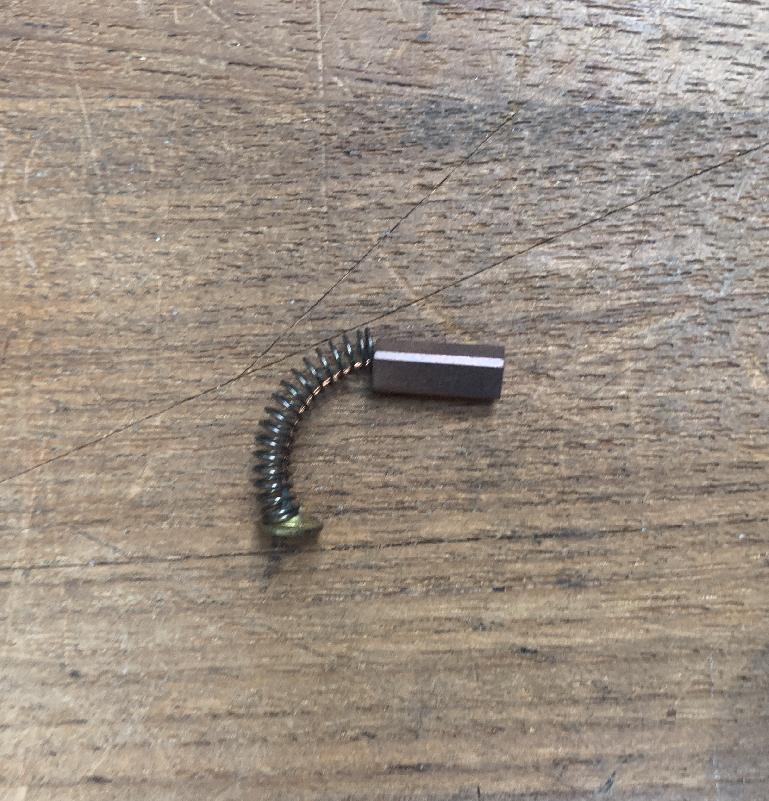

Part Number 9326100297: BRUSH

Pos nr	Part number	Description	Weight in kg
1	7326990030	COLLECTOR COLUMN	0.001
1	9326100273	BASEPLATE
2	8926043	TOP PLATE
3	9326100274	SHAFT
4	9364990074	RETAINING RING	0.001
5	9326100275	M6 STUD
6	9326100276	RING THREAD 10 WAY
7	9326100277	20W-BRUSHBLOCK
8	9326100278	10W-BRUSHBLOCK
9	9326100279	DUMMY RING BOARD
10	9326100280	SLIPRING CORE
11	9326100295	BRUSHGEAR
12	9326100281	MICROSWITCH
14	9326100282	SPACER 8MM LONG
16	9326100283	SPACER 86MM LONG
17	9326100284	SPACER 40MM LONG
18	8396766	SPACER 36.5M LONG
19	9326100285	SPLIT COVER
20	8985983	CATCH PLATE
21	8985982	TOGGLE FASTE
22	8399300	POP RIVET
23	9326100286	TORQUE SOCKET
24	9326100287	BRUSH POST ASSY
25	9400990184	M6 NUT
26	9400990185	M6 FLAT WASHER
27	9326100288	MICROSWITCH MOUNTING 5.5MM
28	9326100289	MICROSWITCH MOUNTING 15.0MM
29	9326100290	SLEW CAM 10 DEG
30	9326100291	SLEW CAM 180 DEG
31	9326100292	CAM SPACER 2.5 MM
32	9326100293	CAM SPACER 8.5MM
32	7097319	LOCK SCREW
33	9326100294	CABLE HARNESS
34	9326100252	SUPPORT RING
35	9326100257	BARRIER STRIP
36	9326100297	BRUSH	0.001
37	8396644	CAP	0.100
38	9326100296	BRUSH COLLECTOR
