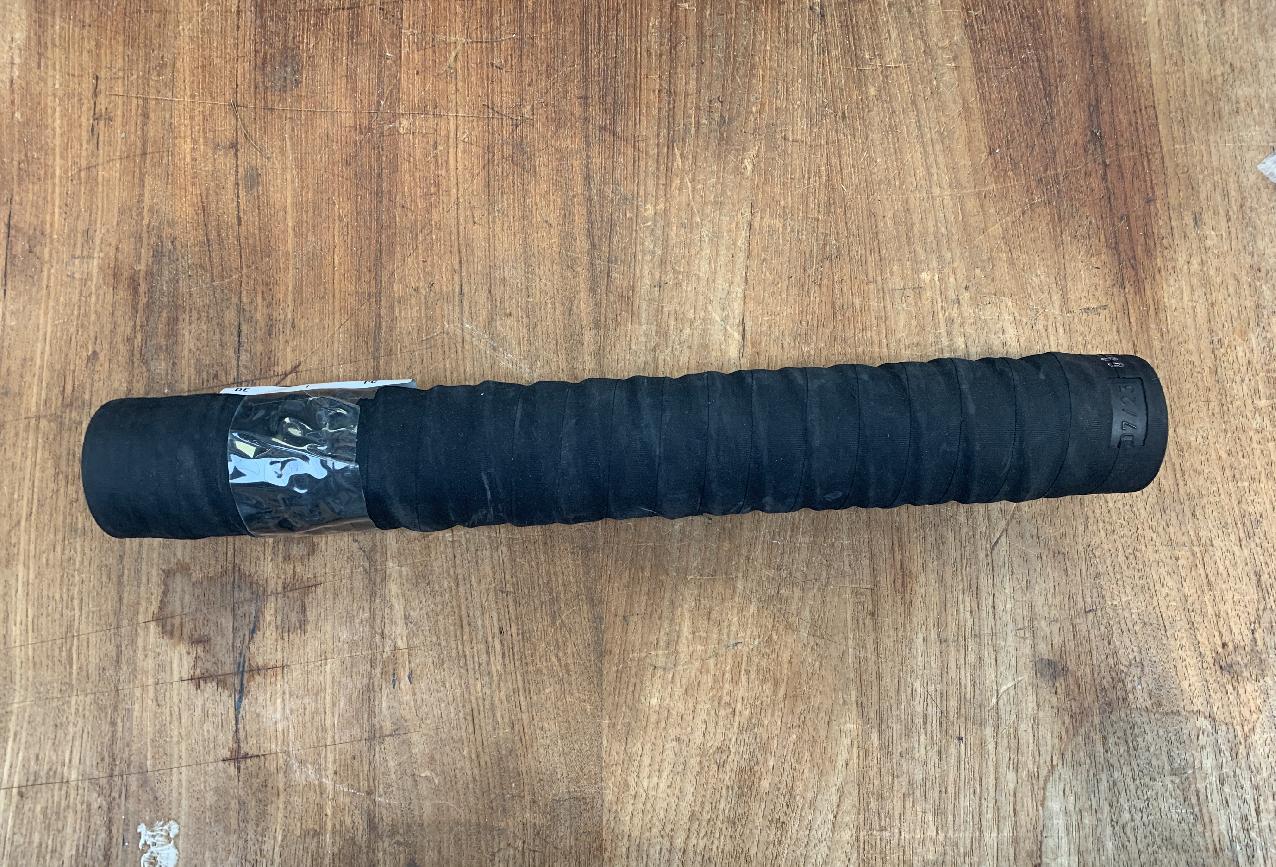

Grove 3046941 - SPIRAL PRESSURE HOSE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3046941, 03046941, 003046941

Parts for Grove GMK 5200, Figure 3007073-ETL:
Part Number 3046941: SPIRAL PRESSURE HOSE

Pos nr	Part number	Description	Weight in kg
1	2314961	RADIATOR WTH CHARGE AIR COOLER	45
2	3041458	FLUID RESERVOIR	6.700
2	3046594	SCREW PLUG	0.04
2	3046595	BAYONET SOCKET	0.200
3	2311182	CONTACT SPRING	0.010
4	2311882	CONCERTINA HOSE	0.33
5	3046941	SPIRAL PRESSURE HOSE	0.43
6	3046037	WATER HOSE	0.76
7	3046039	WATER HOSE	0.36
8	3007077	CONNECTING PIPE	0.6
9	2316876	HOSE (METER WARE)	0.4
10	1207752	HOSE 12 X 3,5 (METERWARE)	0.16
11	3046706	SHAPED HOSE	0.1
15	1376263	MEGI-BUFFER	0.19
17	3007085	MOUNTING PIECE
18	3007090	MOUNTING PIECE
24	3011785	MOUNTING PIECE
27	3046709	CONNECTING PIECE FOR HOSE	0.016
28	1207350	HOSE 10 X 3,5 (PER METER)	0.067
