Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3086485, 03086485, 003086485
3086485, 03086485, 003086485
HYDR. SYSTEM JIB - Part 3086485 for Grove cranes
Fits these models: Grove GMK 3055

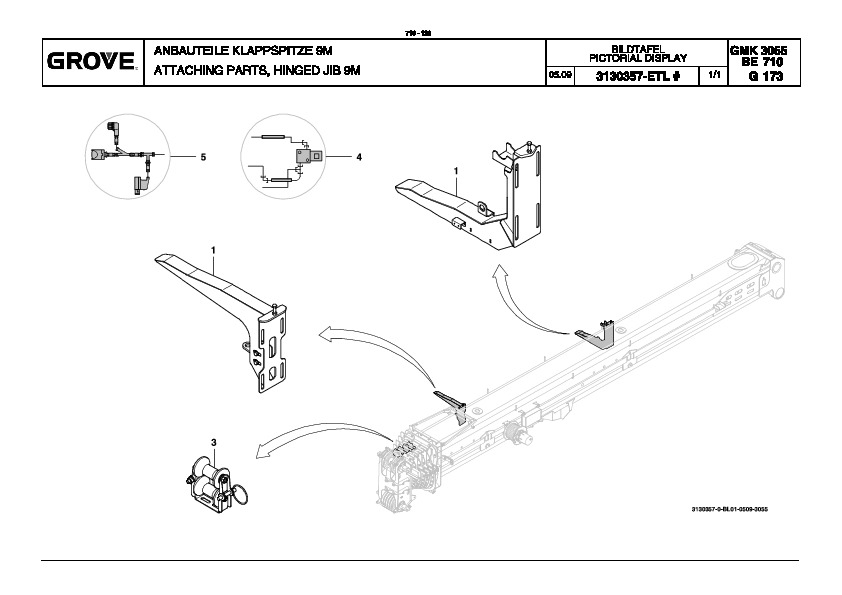

Figure 3130357-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3130338 | ATTACHING PARTS TELESCOPIC BPP, 9 M-PARTS | |
| 3 | 3130354 | HOSE GUIDE | |
| 4 | 3086485 | HYDR. SYSTEM JIB | |
| 5 | 3116791 | CABLE HARNESS, LENGTH TRANSMITTER | 0.98 |
