Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3135765-ETL (Grove GMK 3050-1 )
3135765-ETL (Grove GMK 3055 )
3135765-ETL (Grove GMK 4100-L )
3135765-ETL (Grove GMK 5095 )
3135765-ETL (Grove GMK 5130-2 )
3135765-ETL (Grove GMK 3055 )
3135765-ETL (Grove GMK 4100-L )
3135765-ETL (Grove GMK 5095 )
3135765-ETL (Grove GMK 5130-2 )
Also known as:
3329455, 03329455, 003329455
3329455, 03329455, 003329455
LOCKING SPR1NGS CPL. - Part 3329455 for Grove cranes
Fits these models: Grove GMK 3050-1, Grove GMK 3055, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

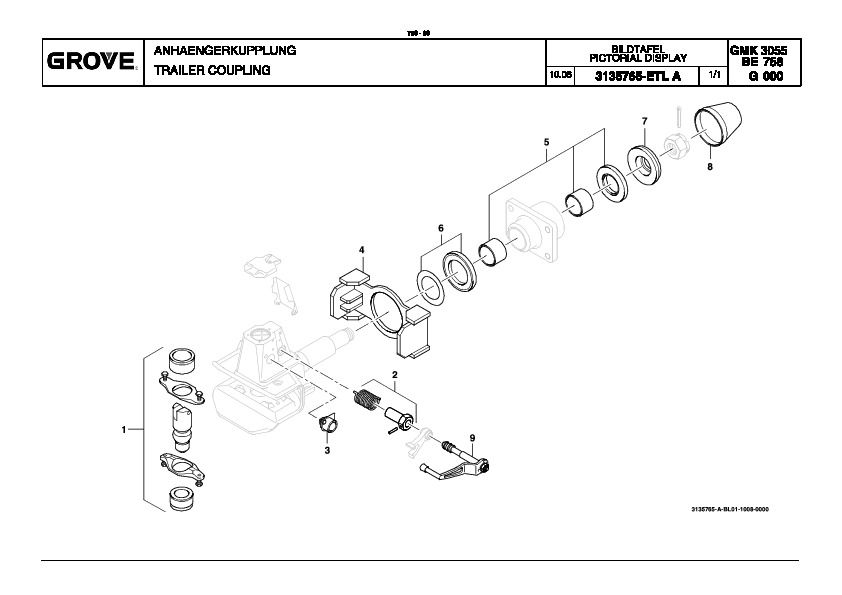

Figure 3135765-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3329454 | REPAIR KIT CPL. |
| 2 | 3329455 | LOCKING SPR1NGS CPL. |
| 3 | 3329456 | STOP BOLT CPL |
| 4 | 3329457 | TORSION SECURING |
| 5 | 3329458 | RUBBER-SPR1NGS |
| 6 | 3329459 | THRUST WASHERS CPL. |
| 7 | 3329460 | PULL WASHER |
| 8 | 3324442 | END COVER |
| 9 | 3329461 | HAND LEVER |
