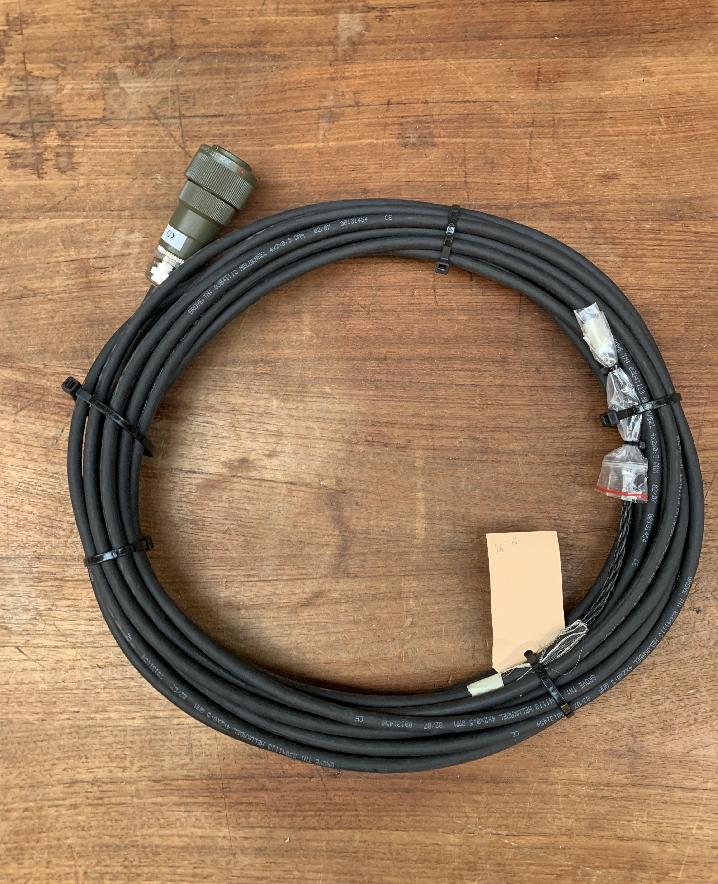

Grove 3328373 - CABLE HARNESS

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

3138890-ETL (Grove GMK 3055 )
GMK (Grove GMK )

Also known as:
3328373, 03328373, 003328373

Parts for Grove GMK 3055, Figure 3138890-ETL:
Part Number 3328373: CABLE HARNESS

Pos nr	Part number	Description	Weight in kg
1	3138900	ROUND
2	3324685	SPRING BOX
3	3324686	SPRING
4	3324687	NUT
5	3324688	SPRING BOX
6	3137337	ROUND
7	3138893	CAP
8	3138894	O-RING	0.001
9	3137327	GEARPOTI WHEEL	0.014
10	3328182	CURRENT COLLECTOR	0.02
11	3324707	SLIP RING	0.005
12	3324695	INSULATING RING	0.005
13	0118223	GROOVED BALL BEARING	0.08
14	3324696	NUT
15	3324697	SEAL	0.005
16	3326958	V-RING	0.005
17	3320123	GROOVED BALL BEARING	0.001
18	2318055	POTENTIOMETER	0.021
19	3137335	BOTTOM PLATE
20	3137328	FOOTFLANGE
21	3328373	CABLE HARNESS	1.545
22	3328371	CABLE HARNESS, SPRING RELEASE DRUM	0.4
23	3138898	LOWER SECTION
24	3138899	GEAR-POTENTIOMETER

* Selected parts are automatically added to your RFQ list *

3328373 Grove GMK 3055 CABLE HARNESS
