Figures in which the part appears:
3144703-ETL (Grove GMK 4100-L )
3065735-ETL (Grove GMK 5095 )
3144703-ETL (Grove GMK 5130-2 )
GMK (Grove GMK )
3065735-ETL (Grove GMK 5095 )
3144703-ETL (Grove GMK 5130-2 )
GMK (Grove GMK )
Also known as:
3135138, 03135138, 003135138
3135138, 03135138, 003135138
PROTECTION - Part 3135138 for Grove cranes
Fits these models: Grove GMK, Grove GMK 4100, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

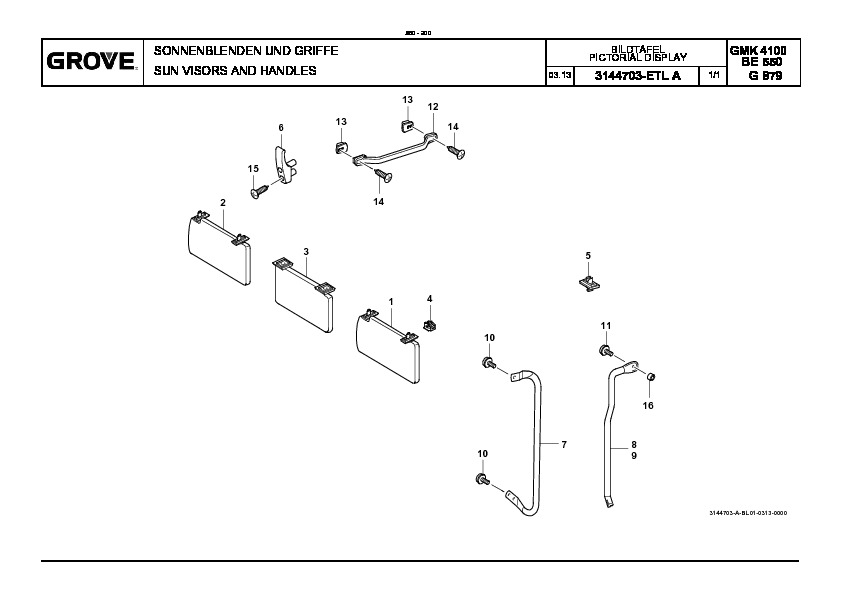

Figure 3144703-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3135135 | SUN VISOR | |
| 2 | 3135136 | SUN VISOR | |
| 3 | 3135137 | SUN VISOR | 1 |
| 4 | 3135138 | PROTECTION | 0.001 |
| 5 | 3135139 | BRACKET | |
| 6 | 4155391 | COAT HOLDER | |
| 7 | 3135141 | HANDLE | |
| 8 | 4155392 | HANDLE LEFT | |
| 9 | 3144698 | HANDLE, RIGHT | |
| 10 | 3135144 | BOLT | |
| 11 | 3135145 | BOLT | |
| 12 | 3135146 | HANDLE | |
| 13 | 3144701 | HOLDER | |
| 14 | 3135148 | TAPPING SCREW | |
| 15 | 4155398 | BOLT | |
| 16 | 3144700 | PIPE |
