3202971-ETL (Grove GMK 4100-L )
3293160-ETL (Grove GMK 4100-L )
3202971-ETL (Grove GMK 5130-2 )

Also known as:
3144646, 03144646, 003144646

Parts for Grove GMK 4100-L, Figure 3202971-ETL:

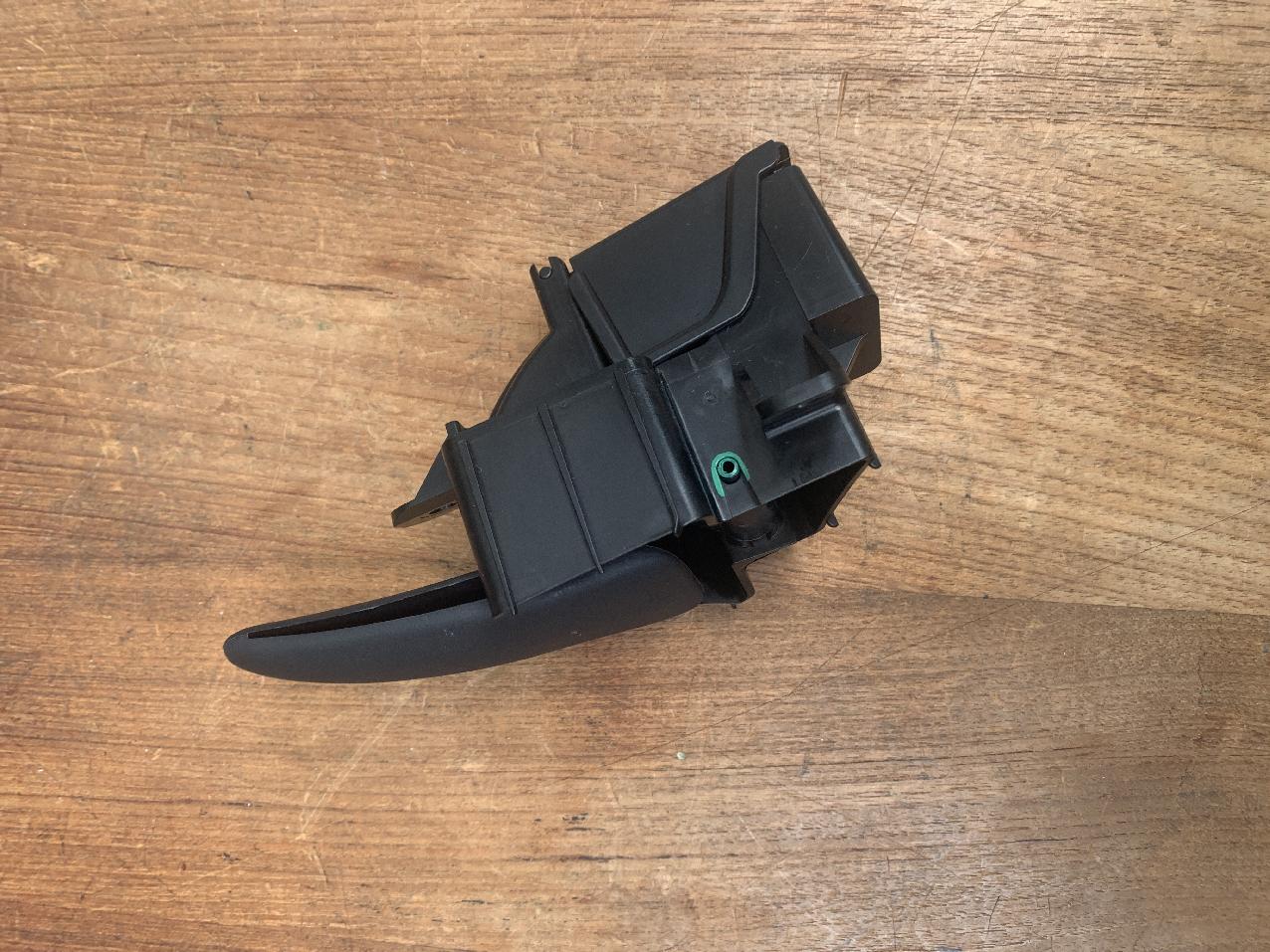

Part Number 3144646: DOOR OPERATION DRIVERS DOOR

Pos nr	Part number	Description	Weight in kg
1	3134899	DRIVERS CAB (SHELL)
2	3134900	ROOF WINDOW
3	3134901	BOLT
4	3134902	EDGE PROTECTION ROOF WINDOW
5	3134903	FRONT PANE	28
6	3134904	DROP WINDOW	22
7	3134905	DROP WINDOW	7
8	3134906	RAIL	0.29
9	3134907	SEALING
10	3134908	SEALING	0.001
11	3134909	SEALING
12	3134910	SEALING	0.22
13	3134911	DOWEL	0.001
14	3134912	PROTECTION	0.005
15	3134913	WINDOW GUIDE
16	3134914	WINDOW GUIDE
17	3134915	PROTECTION
18	3134916	HOLDER FOR WINDOW LIFTER	0.001
19	3134917	HOLDER FOR WINDOW LIFTER	0.001
20	3134918	WINDOW LIFTER, ELECTRIC	4.200
21	3134919	WINDOW LIFTER, ELECTRIC	2.160
22	3134920	PLUG BOX (WINDOW LIFTER MOTOR)	0.020
23	3134921	DOORHANDLE OUTSIDE	0.360
24	3134922	PLATE	0.010
25	3134923	PLATE	0.006
26	3326143	BOLT	0.002
27	3134924	PLUG	0.005
28	3134925	LOCK LEFT HAND	0.011
29	3134926	LOCK RIGHT HAND	0.105
30	3134927	CLOSING BOLT	0.1
31	3134928	BOLT	0.001
32	3134929	PULL ROD	0.04
33	3134930	PULL ROD	0.04
34	3134934	CLAMP	0.001
35	3144643	TACKLE LH	0.015
36	3144644	TACKLE RH	0.065
37	3144646	DOOR OPERATION DRIVERS DOOR	0.110
38	3144647	DOOR OPERATION FRONT PASSENGER DOOR	0.110
39	3134939	COVERING LEFT	5
40	3134940	COVERING RIGHT	4
41	3134941	COVERING VENTILATION
42	3134942	COVERING HANDLE, LH	0.058
43	3134943	COVERING HANDLE, RIGHT	0.064
44	3144648	DOOR SEALING
45	4159804	DRIVER SEAT
46	4159805	CO-DRIVER SEAT
47	3065731	BRAKE SYSTEM
48	3144102	VARIANTS FOOT THROTTLE
49	3065732	STEERING DRIVERS CAB
50	3144686	E.- PARTS AXOR-DRIVERS CAB	0.001
51	3144696	MIRROR
52	3144703	SUN VISORS AND HANDLES
53	3065736	FRONT FLAP
54	3134948	WIPER SUPPORT CPL.	27.273
55	3134949	WIPER ARM CPL.	0.001
56	3065737	\MNDSCREEN WASHER SYSTEM
61	3134954	AIR HEATER
62	3144650	GRID
63	3134956	GRID
64	3134957	NOZZLE
65	3144651	CLAMP
66	3134959	HOSE
67	3144652	CLOCK
68	3134961	FRAME	0.02
69	3134962	AIR-CONDITIONING SYSTEM CPL.
70	3134963	CONTROL PANEL	0.001
71	3134964	PIPELINE CPL.	0.001
72	3134965	PRESSURE LINE CPL.	0.001
73	3134966	REFRIGERANT PIPE	0.030
74	3134967	LIQUID RESERVOIR	0.58
75	3134972	CONDENSER WATER HOSE
76	3134973	SLEEVE
77	3144654	HEATING FILTER CPL.
78	3134977	FLAP
79	3134978	GRID
80	3134979	HOSE
81	3144655	HOSE CLAMP
82	3134980	TRANSMITTING INSTRUMENT	0.001
83	3144680	COVERING AXOR DRIVERS CAB
84	4155291	LOCK LEFT HAND	0.24
85	4155292	LOCK RIGHT HAND	0.105
