COUPLING PIN - Part 3316553 for Grove cranes

Fits these models: Grove GMK 2035, Grove GMK 3050 V3, Grove GMK 3050-1, Grove GMK 3055, Grove GMK 4075, Grove GMK 4080-1, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5100, Grove GMK 5130-2, Grove GMK 5180, Grove GMK 5200, Grove GMK 5220, Grove GMK 6300

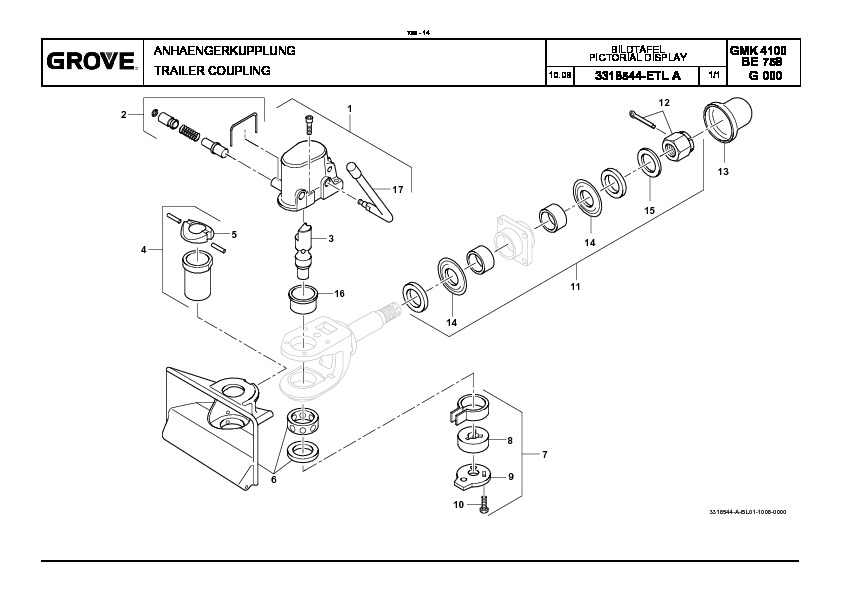

Figure 3318544-ETL:

Pos nr	Part number	Description
1	3316551	AUTOMATIC UNIT, COMPLETE
2	3316552	LOCKING BOLT
3	3316553	COUPLING PIN
4	3316554	BUSH, COMPLETE
5	3316555	SUPPORTING RING
6	3316556	COUPLER HEAD
7	3316557	OMEGA-SHAPED SPRING WITH BOLT
8	3316558	GUIDE BUSH
9	3316559	LOWER SECTION
10	3316560	SET OF BOLTS
11	3316561	REPAIR KIT BEARING PIN
12	3316562	CASTELLATED NUT WITH COTTER PIN
13	3316563	END COVER
14	3316564	CAP
15	3316565	CONE WASHER
16	3316566	BUSH
17	3316567	HAND LEVER
