COVERING REAR - Part 3135042 for Grove cranes
Fits these models: Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

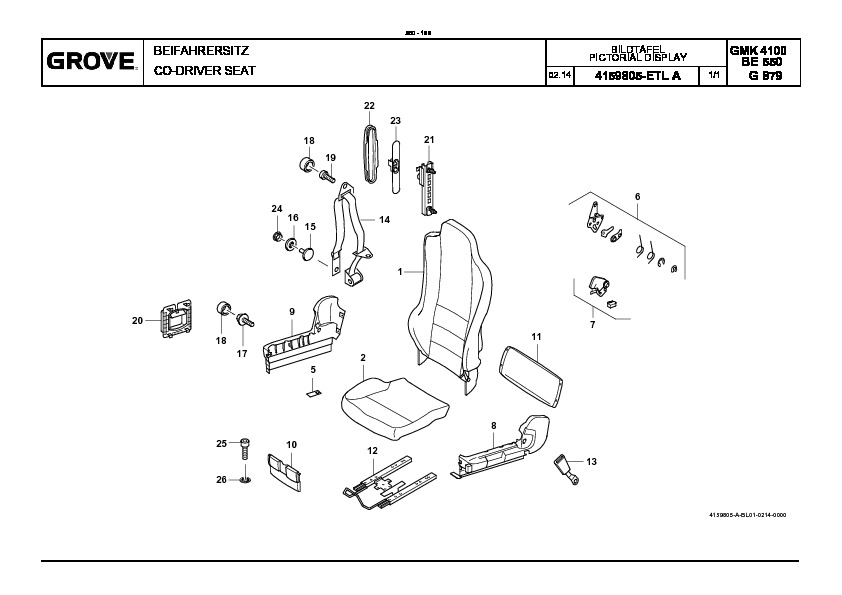

Figure 4159805-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 4159810 | BACK REST |
| 2 | 4159811 | CUSHION |
| 5 | 3135036 | SLIDING JAW |
| 6 | 3135037 | HANDLE |
| 7 | 3135038 | HANDLE |
| 8 | 3135039 | COVERING RIGHT |
| 9 | 3135040 | COVERING LEFT |
| 10 | 3135041 | COVERING FRONT |
| 11 | 3135042 | COVERING REAR |
| 12 | 3135043 | RUNNER RAIL |
| 13 | 4159812 | LOCK |
| 14 | 3135045 | SAFETY BELT |
| 15 | 3135046 | STOP |
| 16 | 3135047 | STOP |
| 17 | 3135048 | BOLT |
| 18 | 3135049 | CAP |
| 19 | 3135050 | BOLT |
| 20 | 3135051 | COVERING TOP |
| 21 | 3135052 | HEIGHT ADJUSTMENT |
| 22 | 3135053 | FRAME |
| 23 | 3135054 | BELT SLIDER |
| 24 | 3135055 | PLUG |
| 25 | 3135023 | BOLT |
| 26 | 3135024 | WASHER |
