Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3135160, 03135160, 003135160
3135160, 03135160, 003135160
CLAMP - Part 3135160 for Grove cranes
Fits these models: Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

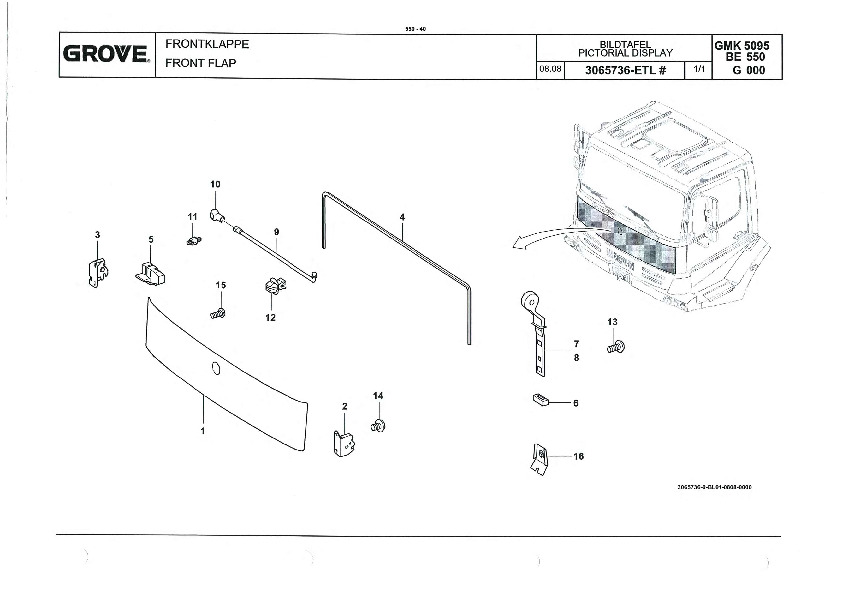

Figure 3065736-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3135149 | FLAP | 0.001 |
| 2 | 3135150 | LOCK | |
| 3 | 3135151 | LOCK | |
| 4 | 3135152 | SEALING | |
| 5 | 3135153 | SEALING | |
| 6 | 3135154 | SEALING | |
| 7 | 3135155 | HINGE | |
| 8 | 3135156 | HINGE | |
| 9 | 3135157 | SUPPORT | |
| 10 | 3135158 | BALL SEAT | |
| 11 | 3135159 | BALL PIN | |
| 12 | 3135160 | CLAMP | |
| 13 | 3135144 | BOLT | |
| 14 | 3135161 | BOLT | |
| 15 | 3135162 | BOLT | |
| 16 | 3135163 | WATER OUTLET |
* Selected parts are automatically added to your RFQ list *
