Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

4159804-ETL (Grove GMK 4100-L )
4159805-ETL (Grove GMK 4100-L )
3134945-ETL (Grove GMK 5095 )
3134946-ETL (Grove GMK 5095 )
3134946-ETL (Grove GMK 5130-2 )
3144649-ETL (Grove GMK 5130-2 )

Also known as:
3135024, 03135024, 003135024

WASHER - Part 3135024 for Grove cranes

Fits these models: Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

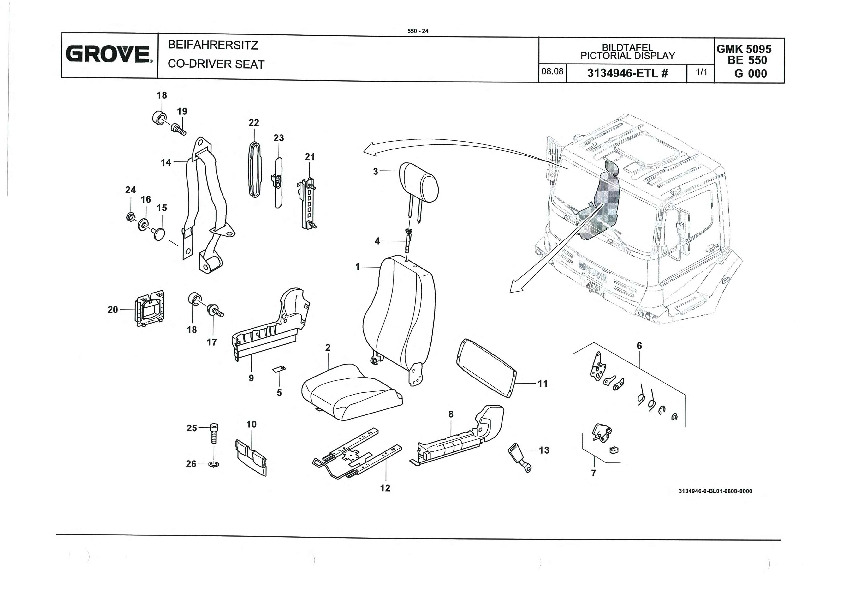

Figure 3134946-ETL:

Pos nr	Part number	Description
1	3135032	BACK REST
2	3135033	CUSHION
3	3135034	HEADREST
4	3135035	BUSH
5	3135036	SLIDING JAW
6	3135037	HANDLE
7	3135038	HANDLE
8	3135039	COVERING RIGHT
9	3135040	COVERING LEFT
10	3135041	COVERING FRONT
11	3135042	COVERING REAR
12	3135043	RUNNER RAIL
13	3135044	LOCK
14	3135045	SAFETY BELT
15	3135046	STOP
16	3135047	STOP
17	3135048	BOLT
18	3135049	CAP
19	3135050	BOLT
20	3135051	COVERING TOP
21	3135052	HEIGHT ADJUSTMENT
22	3135053	FRAME
23	3135054	BELT SLIDER
24	3135055	PLUG
25	3135023	BOLT
26	3135024	WASHER
