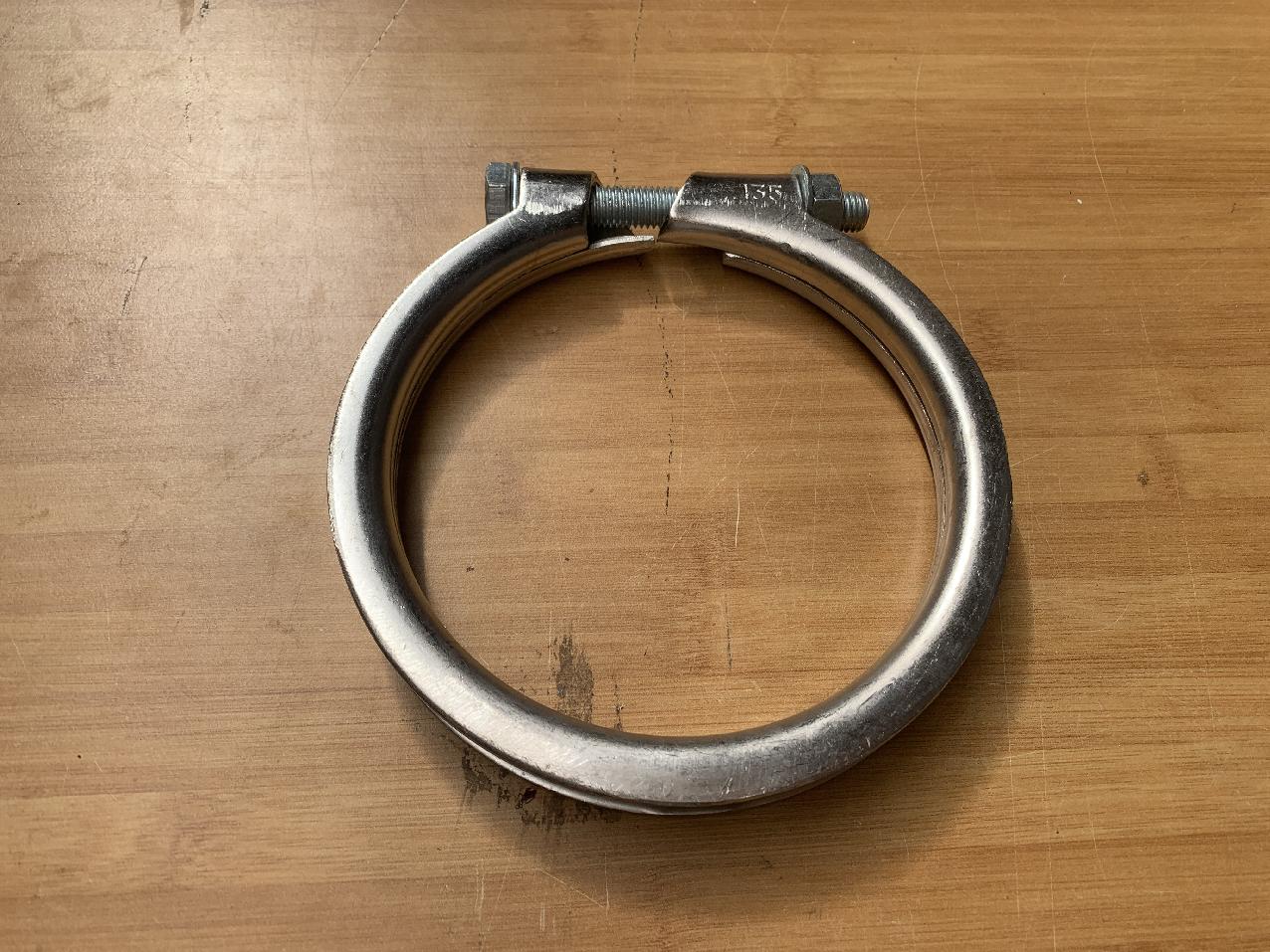

Grove 3317448 - COLLAR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3317448, 03317448, 003317448

Parts for Grove GMK 5095, Figure 3150953-ETL:
Part Number 3317448: COLLAR

Pos nr	Part number	Description	Weight in kg
1	3326627	SILENCER
1	3326630	RAIN CAP
1	3326628	HEAT SHIELD
1	3326629	CLAMP
1	3326625	STRAP
1	3325336	EXHAUST SYSTEM WITH SPARK ARRESTER	0.001
2	0437184	HEXAGON SCREW	0.030
3	0437643	HEXAGON NUT M10	0.010
4	1368030	WASHER M10	0.005
5	3150979	SHIELDING PLATE
6	2255713	SCREW	0.015
7	3317448	COLLAR
8	3126209	EXHAUST PIPE
9	3317093	COLLAR	0.300
10	3126208	FLEXBLE PIPE	2.24
11	0027079	HEXAGON SCREW M8	0.014
12	0437642	HEXAGON NUT M8	0.003
13	1686701	WASHER M8	0.005
14	3150962	HOLDING
15	2318372	CLAMP	0.610
