Figures in which the part appears:
Also known as:
3125570, 03125570, 003125570
3125570, 03125570, 003125570
SKIRTING STRIP - Part 3125570 for Grove cranes
Fits these models: Grove GMK, Grove GMK 4100, Grove GMK 4100-L, Grove GMK 5095

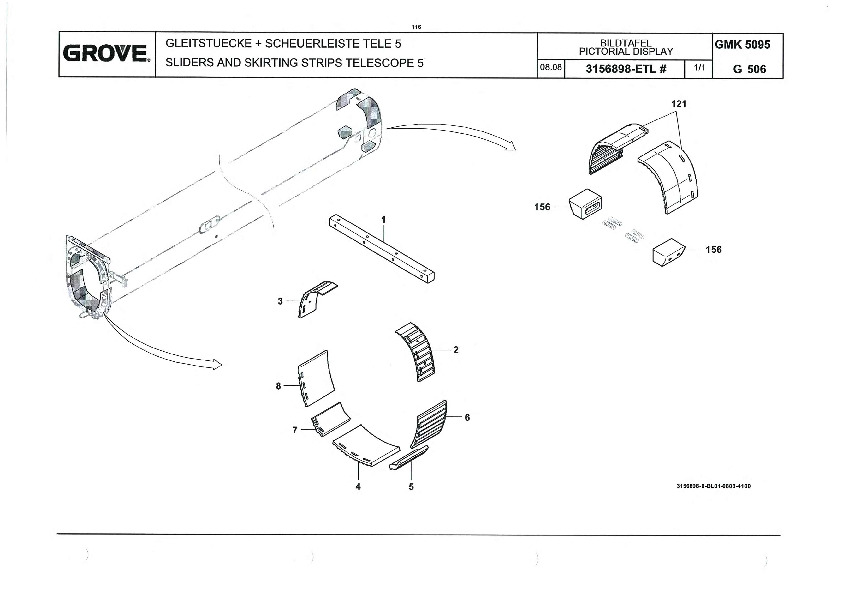

Figure 3156898-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3125570 | SKIRTING STRIP | 2.5 |
| 2 | 3125571 | SLIDER | 0.77 |
| 3 | 3125572 | SLIDER | 0.77 |
| 4 | 3125573 | SLIDER | 1.41 |
| 5 | 3125574 | SLIDER | 0.45 |
| 6 | 3125575 | SLIDER | 1.04 |
| 7 | 3125576 | SLIDER | 0.45 |
| 8 | 3125577 | SLIDING PIECE | 0.58 |
| 121 | 3156903 | SLIDER | 2.24 |
| 156 | 3117682 | SLIDER | 0.94 |
