Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3125475, 03125475, 003125475
3125475, 03125475, 003125475
SKIRTING STRIP - Part 3125475 for Grove cranes
Fits these models: Grove GMK 4100, Grove GMK 4100-L, Grove GMK 5095

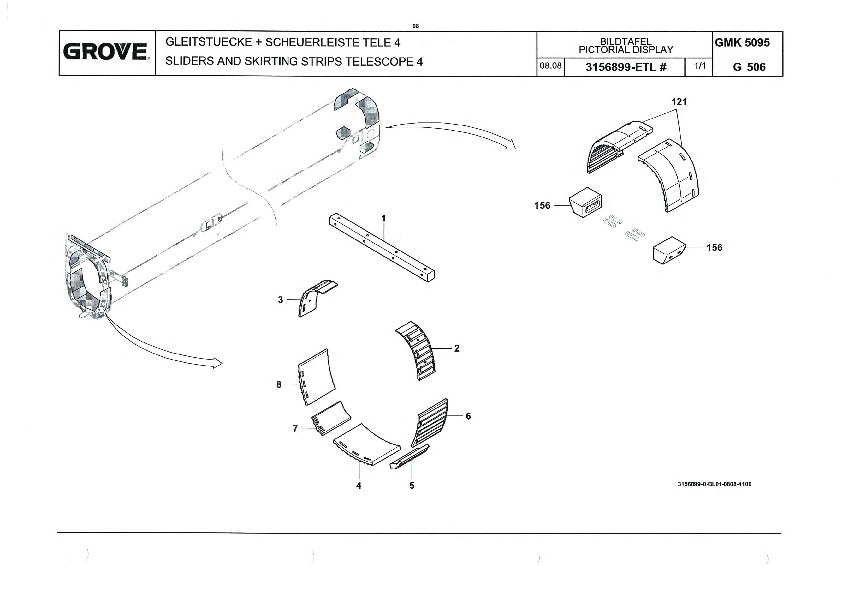

Figure 3156899-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3125475 | SKIRTING STRIP | 2.730 |
| 2 | 3125476 | SLIDING PIECE | 0.58 |
| 3 | 3125477 | SLIDING PIECE | 0.58 |
| 4 | 3125478 | SLIDER | 1.560 |
| 5 | 3125479 | SLIDER | 0.5 |
| 6 | 3125480 | SLIDING PIECE | 0.68 |
| 7 | 3125481 | SLIDER | 0.5 |
| 8 | 3125482 | SLIDER | 0.68 |
| 121 | 3156902 | SLIDER | |
| 156 | 3117681 | SLIDER | 1.400 |
* Selected parts are automatically added to your RFQ list *
