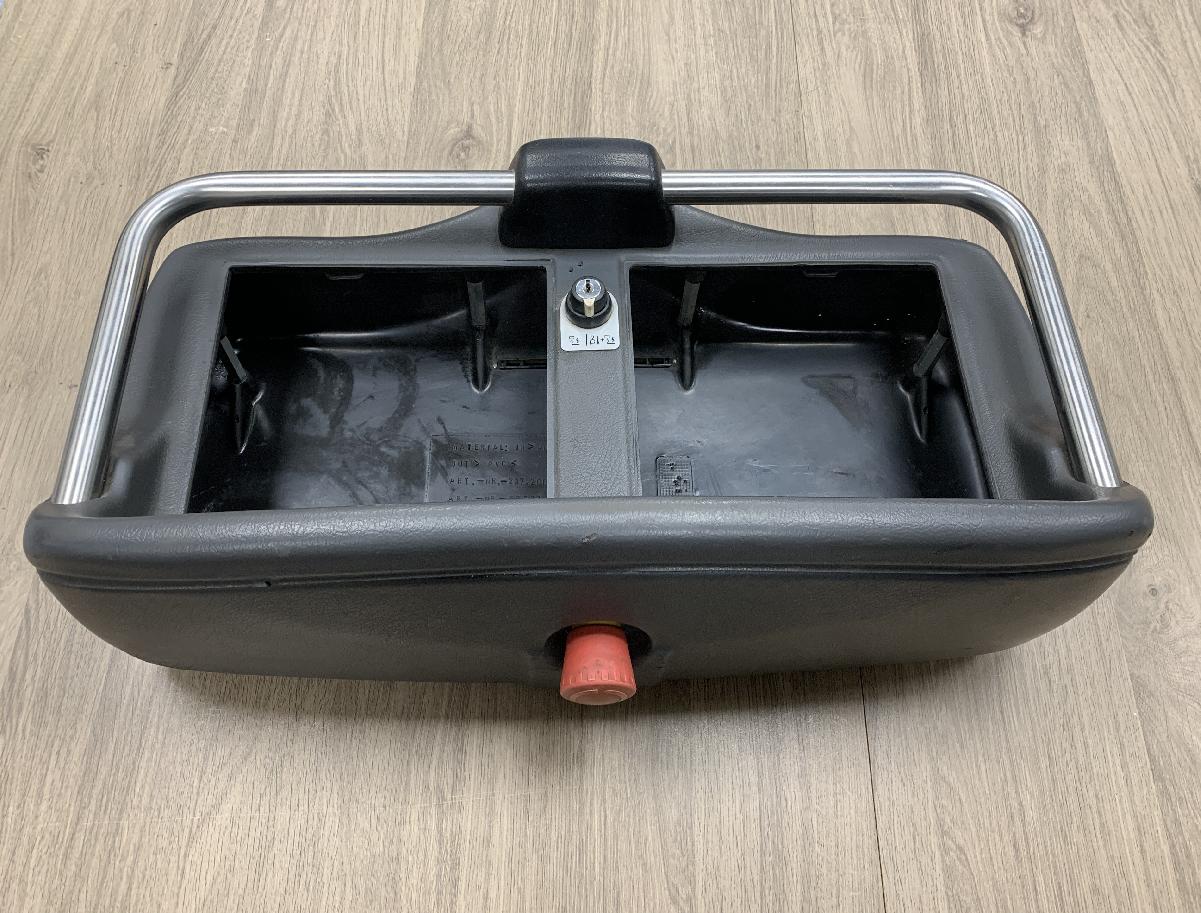

Grove 3322589 - INSTRUMENT SUPPORT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3322589, 03322589, 003322589

Parts for Grove GMK 2035E, Figure 3089058-ETL:
Part Number 3322589: INSTRUMENT SUPPORT

Pos nr	Part number	Description	Weight in kg
2	3135250	CONTROL UNIT (DISPLAY)	1.800
3	3319347	PUSH BUTTON	0.065
4	3319350	CIRCUIT ELEMENT	0.02
5	3323562	DISPLAY EKS 5 LIGHT	1.6
6	3322589	INSTRUMENT SUPPORT	3.780
7	3323997	TAPPING SCREW	0.007
10	3317175	CONTROL LINKAGE	0.200
11	3319348	HOLDER	0.020
12	3317177	CONTACTOR	0.010
18	3067122	SYMBOL LIFTING LIMIT / SLI	0.005
20	3326175	MOUNTING BASE	0.005
