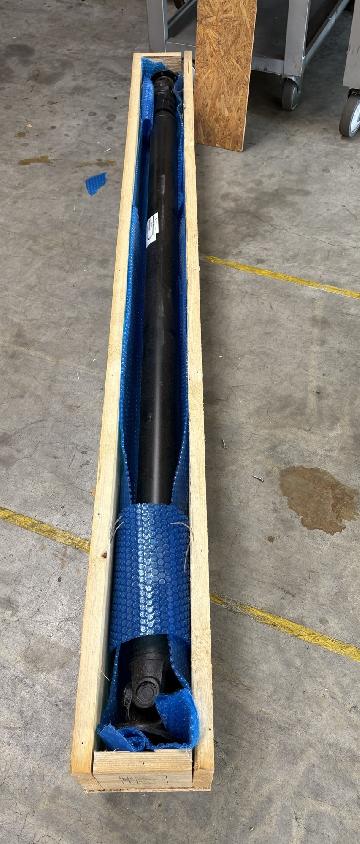

Grove 3113156 - TRANSMISSION

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3113156, 03113156, 003113156

Parts for Grove GMK 3050-1, Figure 3203799-ETL:
Part Number 3113156: TRANSMISSION

Pos nr	Part number	Description	Weight in kg
1	3202832	MOUNTING, ENGINE AND GEAR BOX
4	3066076	MOUNTING RADIATOR
6	3126614	ARRACHMENT, ADJUSTING PUMPS
7	3066078	ATTACHMENT, ADJUSTING PUMPS
10	3221550	CARDAN SHAFT
11	3066081	CARDAN SHAFT	42.700
13	3113156	TRANSMISSION	37
14	1574950	HEXAGON SCREW	0.08
15	1685829	HEXAGON NUT	0.025
16	1685832	HEXAGON NUT	0.015
17	0119186	BOLT	0.16
18	0103190	HEXAGON SCREW	0.015
19	1921897	HEXAGON NUT	0.01
21	3091104	PERMANENT ENGAGEMENT
