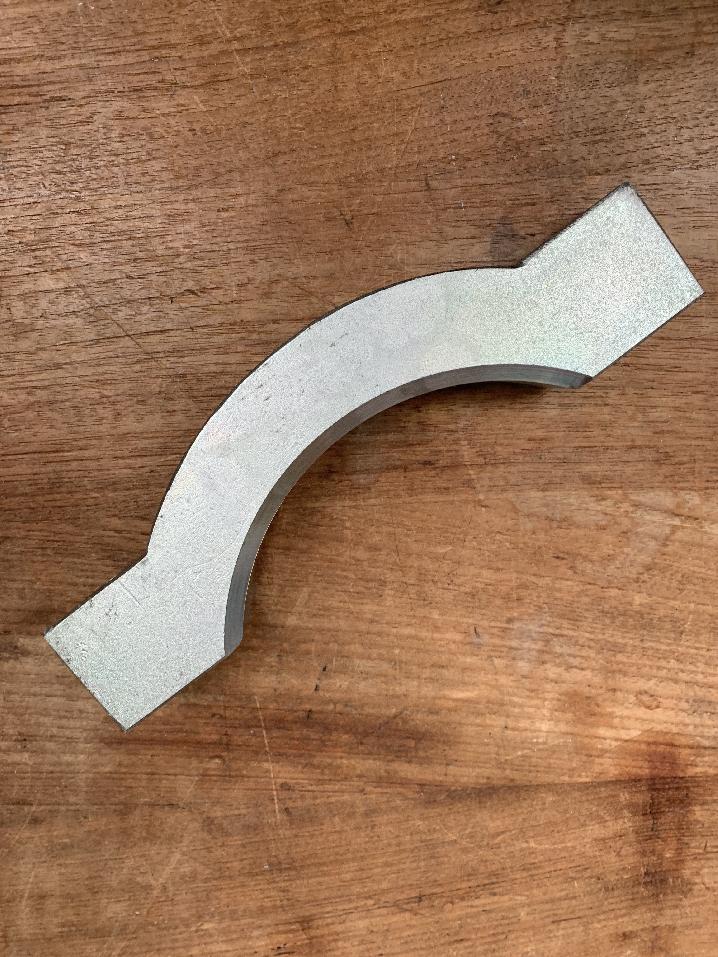

Grove 3151216 - STIRRUP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3151216, 03151216, 003151216

Parts for Grove GMK 3060, Figure 3253001-ETL:
Part Number 3151216: STIRRUP

Pos nr	Part number	Description	Weight in kg
10	3253004	COUNTER WEIGHT-PLATE
11	3082445	COUNTERWEIGHT PLATE 2(1 T)	1.039
12	3151214	LOCK	1.812
13	3151215	THREADED BOLT M22X375	0.97
14	3151216	STIRRUP	2.030
15	1682004	HEXAGON NUT	0.065
16	0439484	HEXAGON NUT	0.072
17	0026006	WASHER
18	2313237	HEXAGON BOLT	0.001
19	0439428	HEXAGON NUT	0.122
20	3252968	RUBBER
21	3252969	THREADED PIN
22	3259663	PLATE
23	3259680	PLATE
