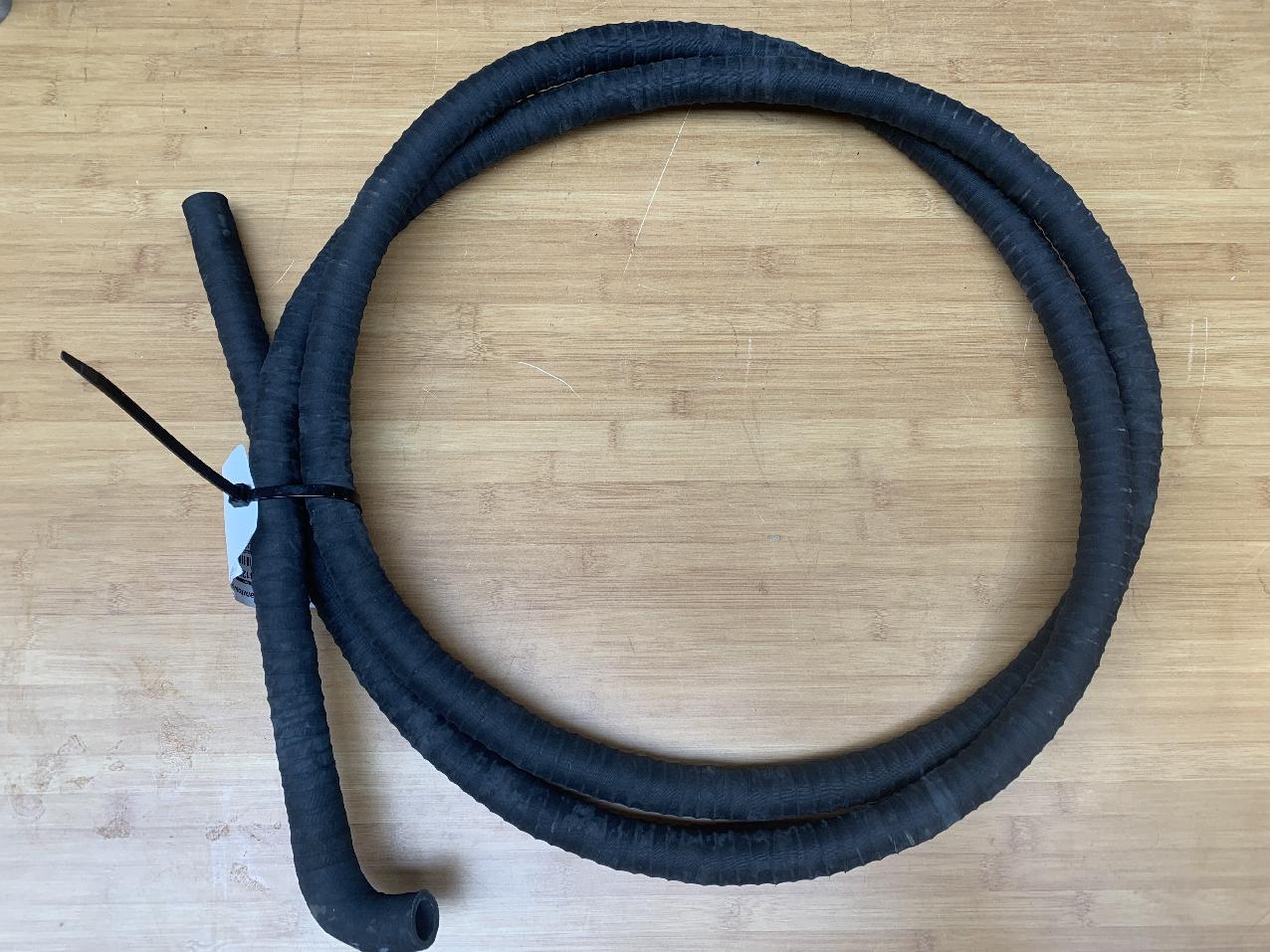

Grove 2312098 - SHAPED HOSE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

3057456-ETL (Grove GMK 4080-1 )
3150969-ETL (Grove GMK 5095 )
3009091-ETL (Grove GMK 5100 )
3054016-ETL (Grove GMK 5100 )
3204568-ETL (Grove GMK 5110-1 )
3204568-ETL (Grove GMK 5130-2 )
3009658-ETL (Grove GMK 6220L )
GMK (Grove GMK )

Also known as:
2312098, 02312098, 002312098

Parts for Grove GMK 4080-1, Figure 3057456-ETL:
Part Number 2312098: SHAPED HOSE

Pos nr	Part number	Description	Weight in kg
1	3317858	WATER- /CHARGE-AIR RADIATOR
2	3041686	COOLING WATER LEVEL SENDER	0.28
2	3316228	LOCK	0.05
2	3325731	VALVE	0.08
2	3325732	VALVE	0.05
2	2315685	FLUID RESERVOIR	6
3	3010587	MOUNTING PIECE	0.001
11	3057488	COOLING WATER PIPE	3
12	3057489	COOLING-WATER PIPE 2	2.1
13	3057490	COOLING-WATER PIPE 3	0.704
14	3323207	HOSE (METER WARE)	2.040
15	3057491	HOSE	1.220
16	3323206	HOSE (METER WARE)	1.960
17	3057492	GRATE	18.6
20	1682493	COCK	3
29	2312098	SHAPED HOSE	2.5
30	2309777	HOSE	1.500
31	3041886	SHAPED HOSE	1.380
40	0438026	FILLING AND DRAINING COCK	0.32
42	3320529	FLANGE SEAL	0.010
