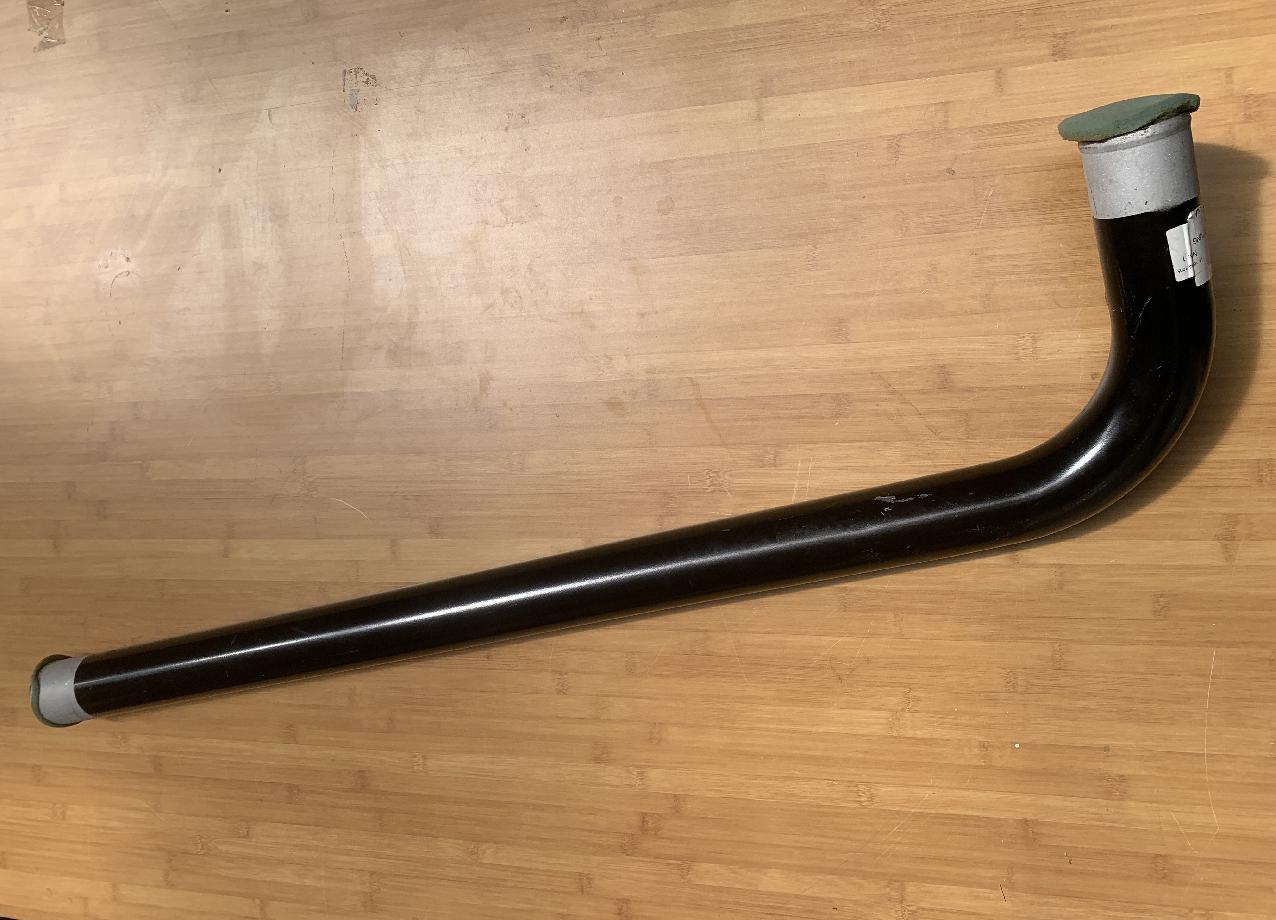

Grove 3057488 - COOLING WATER PIPE

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3057488, 03057488, 003057488

Parts for Grove GMK 4080-1, Figure 3057456-ETL:
Part Number 3057488: COOLING WATER PIPE

Pos nr	Part number	Description	Weight in kg
1	3317858	WATER- /CHARGE-AIR RADIATOR
2	3041686	COOLING WATER LEVEL SENDER	0.28
2	3316228	LOCK	0.05
2	3325731	VALVE	0.08
2	3325732	VALVE	0.05
2	2315685	FLUID RESERVOIR	6
3	3010587	MOUNTING PIECE	1.460
11	3057488	COOLING WATER PIPE	3
12	3057489	COOLING-WATER PIPE 2	2.1
13	3057490	COOLING-WATER PIPE 3	0.704
14	3323207	HOSE (METER WARE)	2.040
15	3057491	HOSE	1.220
16	3323206	HOSE (METER WARE)	1.960
17	3057492	GRATE	18.6
20	1682493	COCK	0.580
29	2312098	SHAPED HOSE	2.5
30	2309777	HOSE	1.500
31	3041886	SHAPED HOSE	1.380
40	0438026	FILLING AND DRAINING COCK	0.32
42	3320529	FLANGE SEAL	0.010
