Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3329931, 03329931, 003329931
3329931, 03329931, 003329931
Parts for Grove GMK 5130-2, Figure 3204768-ETL:

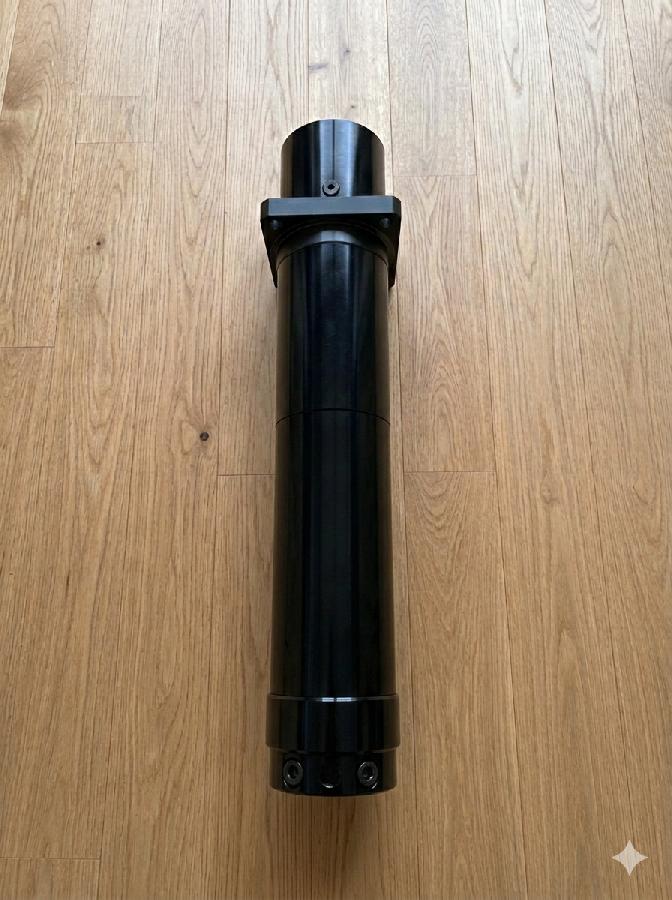

Part Number 3329931: OUTRIGGER CYLINDER
Part Number 3329931: OUTRIGGER CYLINDER
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3207559 | HOSES, SUPPORT FRONT | |
| 2 | 3329931 | OUTRIGGER CYLINDER | 103 |
| 3 | 3327769 | CYLINDER CLUSTER | 88 |
| 4 | 2318318 | CLAMP (PAIR) | 0.015 |
| 5 | 1571750 | SUPPORT RAIL NUT | 0.030 |
| 6 | 1147651 | SCREW-IN FITTING | 0.042 |
| 7 | 1207473 | HEXAGON SOCKET HEAD CAP SCREW | 0.145 |
| 9 | 3322773 | COUNTERSUNK HEAD TAPPING SCREW | 0.001 |
| 12 | 3204770 | DEPOT TROUGH CPL. | 3.500 |
| 13 | 3320846 | POWER SLAWING CHAIN | 2 |
| 15 | 3317227 | PIPE ELBOW | 0.26 |
