Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3316747, 03316747, 003316747
3316747, 03316747, 003316747
FLEXIBLE ELEMENT - Part 3316747 for Grove cranes
Fits these models: Grove GMK, Grove GMK 5100, Grove GMK 5130-2

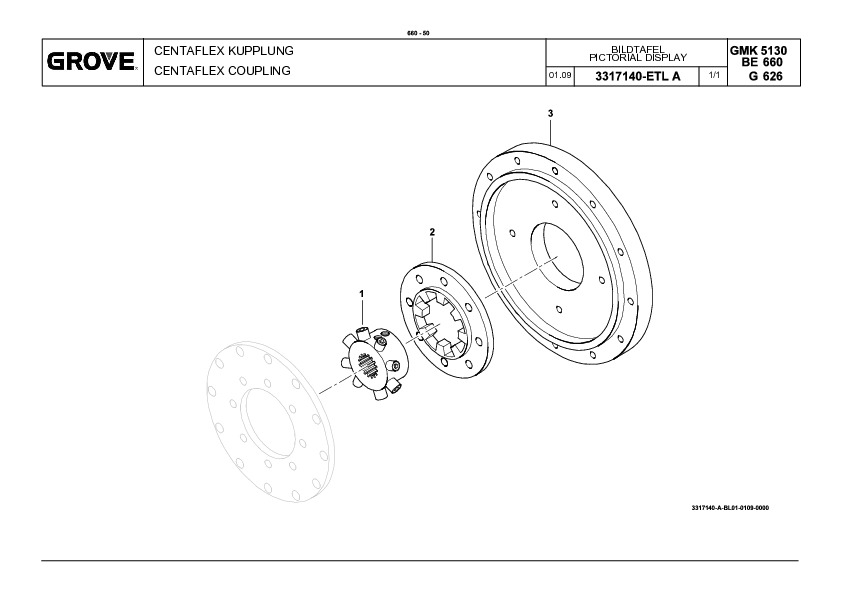

Figure 3317140-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3316746 | HUB SPIDER CPL. | |
| 2 | 3316747 | FLEXIBLE ELEMENT | 4.860 |
| 3 | 3316748 | MOUNTING FLANGE |
