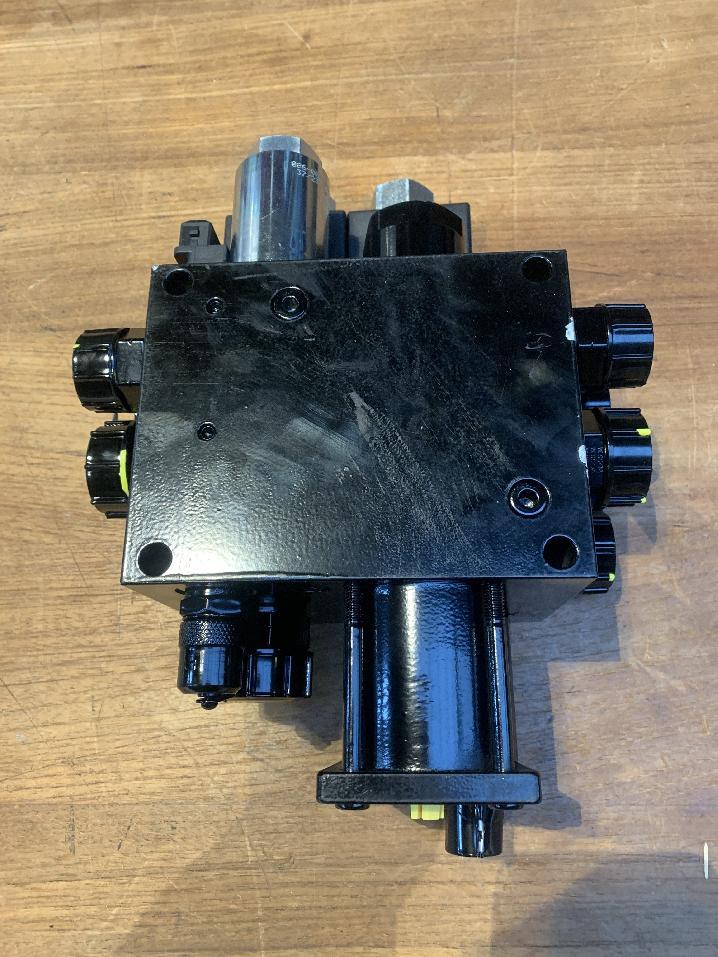

Grove 3311561 - SHOCK-ABSORBING STRUT VENTIL

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3311561, 03311561, 003311561

Parts for Grove GMK 5250L, Figure 3224673-ETL:
Part Number 3311561: SHOCK-ABSORBING STRUT VENTIL

Pos nr	Part number	Description	Weight in kg
1	3311561	SHOCK-ABSORBING STRUT VENTIL	8
2	1575152	SCREW-IN FITTING	0.15
3	0434163	SCREW-IN FITTING	0.095
4	0208002	SCREW CONNECTION	0.01
6	1573652	MEASURING NOZZLE	0.22
7	3142459	PRESSURE SENSOR	0.3
8	0553243	SCREW PLUG	0.046
9	1147777	L-CONNECTION NOZZLE	0.27
10	0553239	SCREW PLUG	0.240
11	1147767	L-CONNECTION NOZZLE	0.370
12	1147645	W-CONNECTION NOZZLE	0.206
13	0208007	W-CONNECTION NOZZLE	0.17
14	3302335	PLATE
15	1686701	WASHER M8	0.005
16	2315094	HEXAGON SCREW
17	3044936	HEXAGON NUT M8	0.005
18	4156424	ABC CONNECTION NOZZLE	0.03
19	4156435	ABC COUPLING 90°	0.017
20	1147703	W-CONNECTION NOZZLE	0.260
