Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3041963-ETL (Grove GMK 5180 )
3041963-ETL (Grove GMK 5200 )
2315890-ETL (Grove GMK 6220L )
2315890-ETL (Grove GMK 6300 )
GMK (Grove GMK )
3041963-ETL (Grove GMK 5200 )
2315890-ETL (Grove GMK 6220L )
2315890-ETL (Grove GMK 6300 )
GMK (Grove GMK )
Also known as:
3043571, 03043571, 003043571
3043571, 03043571, 003043571
GUIDE HEAD - Part 3043571 for Grove cranes
Fits these models: Grove GMK, Grove GMK 5180, Grove GMK 5200, Grove GMK 6220L, Grove GMK 6300

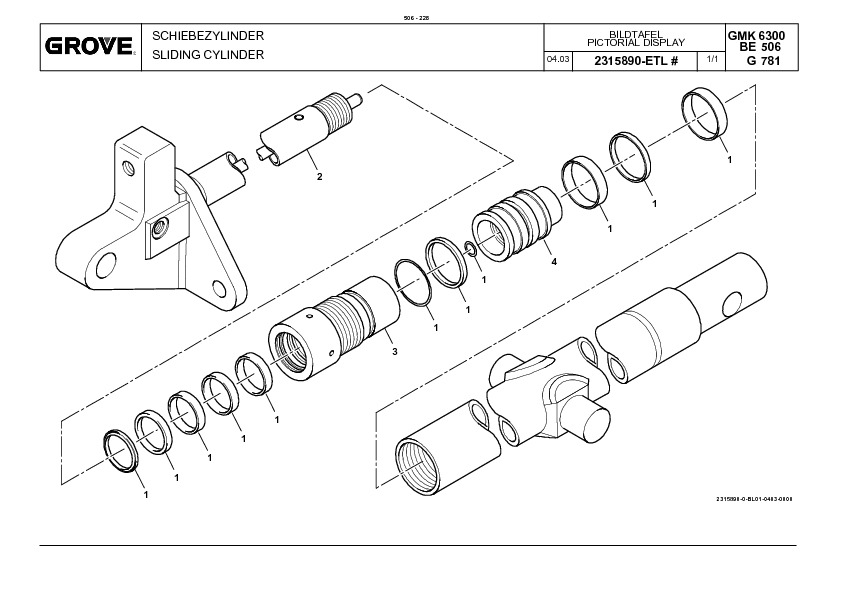

Figure 2315890-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3043569 | SEAL KIT | 0.05 |
| 2 | 3043570 | PISTON ROD | |
| 3 | 3043571 | GUIDE HEAD | 1.02 |
| 4 | 3043572 | PISTON |
