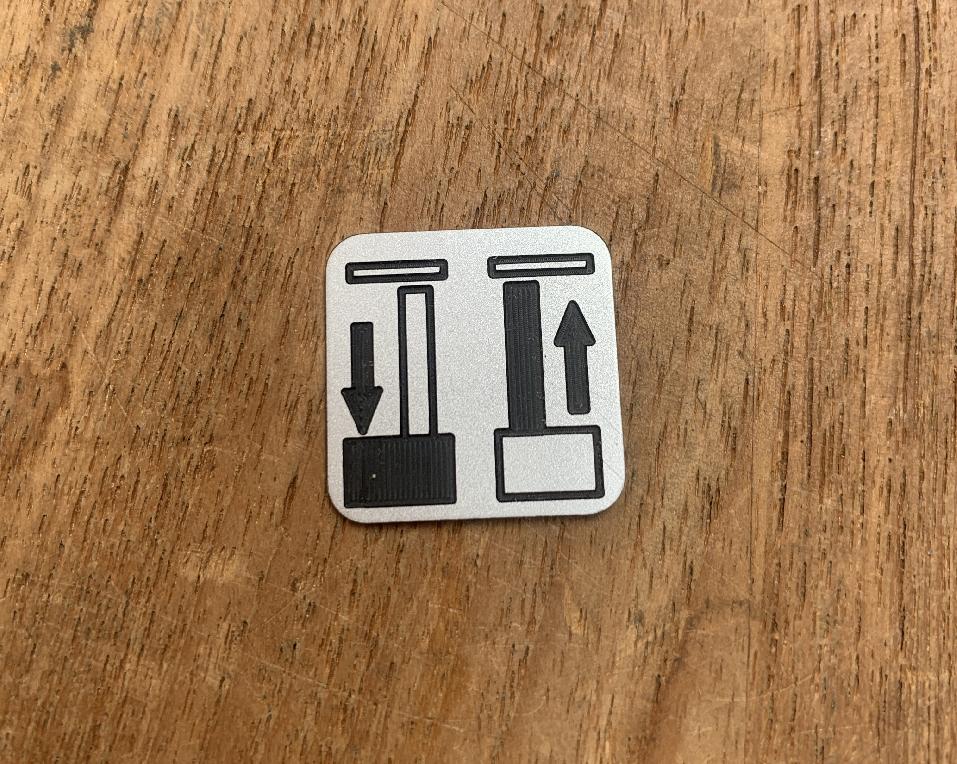

Grove 3054132 - INSERT UP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3054132, 03054132, 003054132

Parts for Grove GMK 6220L, Figure 3054135-ETL:
Part Number 3054132: INSERT UP

Pos nr	Part number	Description	Weight in kg
1	3053060	PUSH BUTTONS	1.46
1.01	1370176	SWITCH ELEMENT	0.160
1.02	3316600	LAMP-SOCKET	0.012
1.03	3316601	SIGNAL LAMP	0.350
1.04	3316602	PUSH BUTTON	0.160
1.05	3316603	PUSH BUTTON	0.020
1.06	3316604	SWICH	0.018
1.07	1576438	BULB (T8/2 24V, 2W)	0.001
1.08	3316605	FRONT RING	0.001
2	3054130	INSERT UNLOCKED	0.005
3	3054131	INSERT LOCKED	0.005
4	3054132	INSERT UP	0.001
5	3054133	INSERT DOWN	0.001
6	3054134	INSERT OFF/ON	0.005
