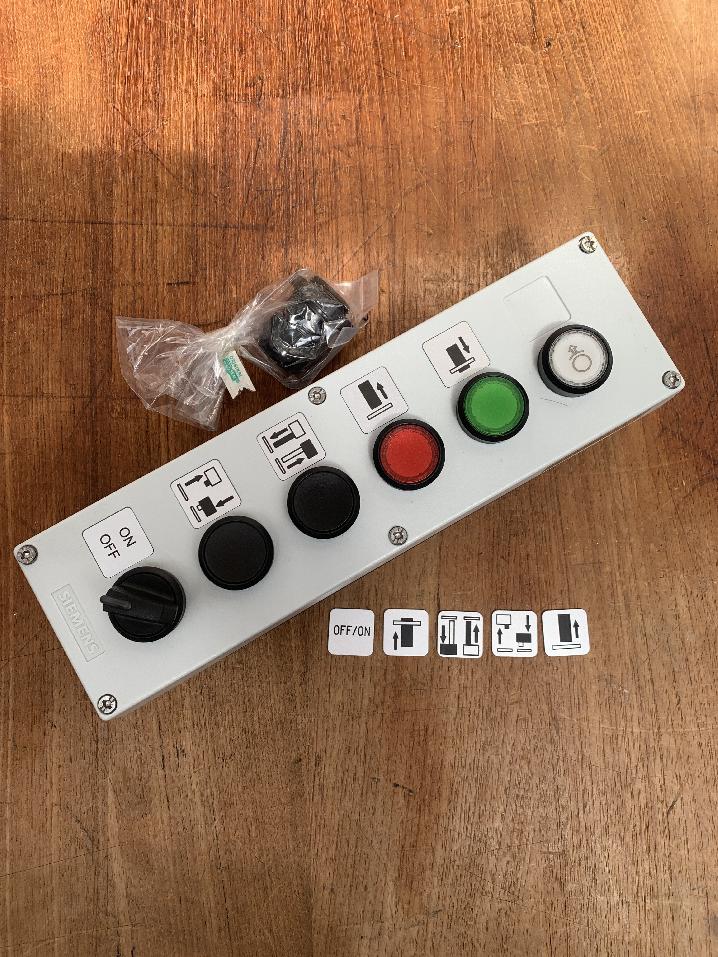

Grove 3054135 - ELECTRICAL PARTS PUSH BUTTON UNIT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3054135, 03054135, 003054135

Parts for Grove GMK 6220L, Figure 3067657-ETL:
Part Number 3054135: ELECTRICAL PARTS PUSH BUTTON UNIT

Pos nr	Part number	Description	Weight in kg
1	3010428	CABLE HARNESS, JUNCTION PLATE-INTERFACE	2.44
2	3053062	CABLE HARNESS, BOOM-INTERFACE	2.345
3	3010440	CABLE HARNESS, SLIP RING BODY-INTERFACE	2.88
4	3011529	CABLE HARNESS, JUNCTION PLATE CAN-JOINTS	0.33
5	3012749	ELECTRICAL PARTS FOR TUANTABLE
7	3011504	ELECTRICAL PARTS FOR TERMINAL BOX V4	2.782
7.01	2215510	JUNCTION BOX	0.26
8	3067658	ELECTR. PARTS TERMINAL BOX;
9	3012747	ELECTRICAL PARTS FOR TERMINAL BOX V6
9.26	2217905	CABLE PLUG	0.03
10	3012748	ELECTRICAL PARTS FOR TERMINAL BOX V7
10.18	3054135	ELECTRICAL PARTS PUSH BUTTON UNIT	1.865
11	3053078	ELECTRICAL PARTS FOR TERMINAL BOX V8
11.19	3046609	PROXIMITY SWITCH	0.085
12	3011509	ELECTRICAL PARTS FOR TERMINAL BOX V9
12.24	2250690	BEARING 4.92 OD X 3.15 ID X 2.36 WIDE	0.001
13	3012722	ELECTRICAL PARTS FOR BATTERY BOX
14	3012723	CABLE HARNESS, BATTERY PLUS - MINUS
14.02	0550379	BATTERY BOX, MINUS	0.11
14.03	0550380	BATTERY BOX, PLUS	0.12
14.06	1927261	POLE CAP
15	3012731	CABLE HARNESS, BATTERY PLUS-MASTER	0.86
15.06	0557429	PROTECTION CAP	0.009
16	3012732	CABLE HARNESS, BATTERY MINUS-FRAME
17	3012733	CABLE HARNESS, MASTER SWITCH-STARTER L=4000	0.001
18	3012734	CABLE HARNESS, GROUND CON NECTION
19	3012735	CABLE HARNESS, MASTER SWITCH-ALTERNATOR
20	3012736	CABLE HARNESS, MASTERSWITCH - MAIN FUSE
21	3012730	CABLE HARNESS, MASTER SWITCH ADDITIONAL FUSE
22	3012741	CABLE HARNESS, BATTERY BOX-CABIN
