Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3188528, 03188528, 003188528
3188528, 03188528, 003188528
Parts for Grove GMK 6300L, Figure 3412786-ETL:

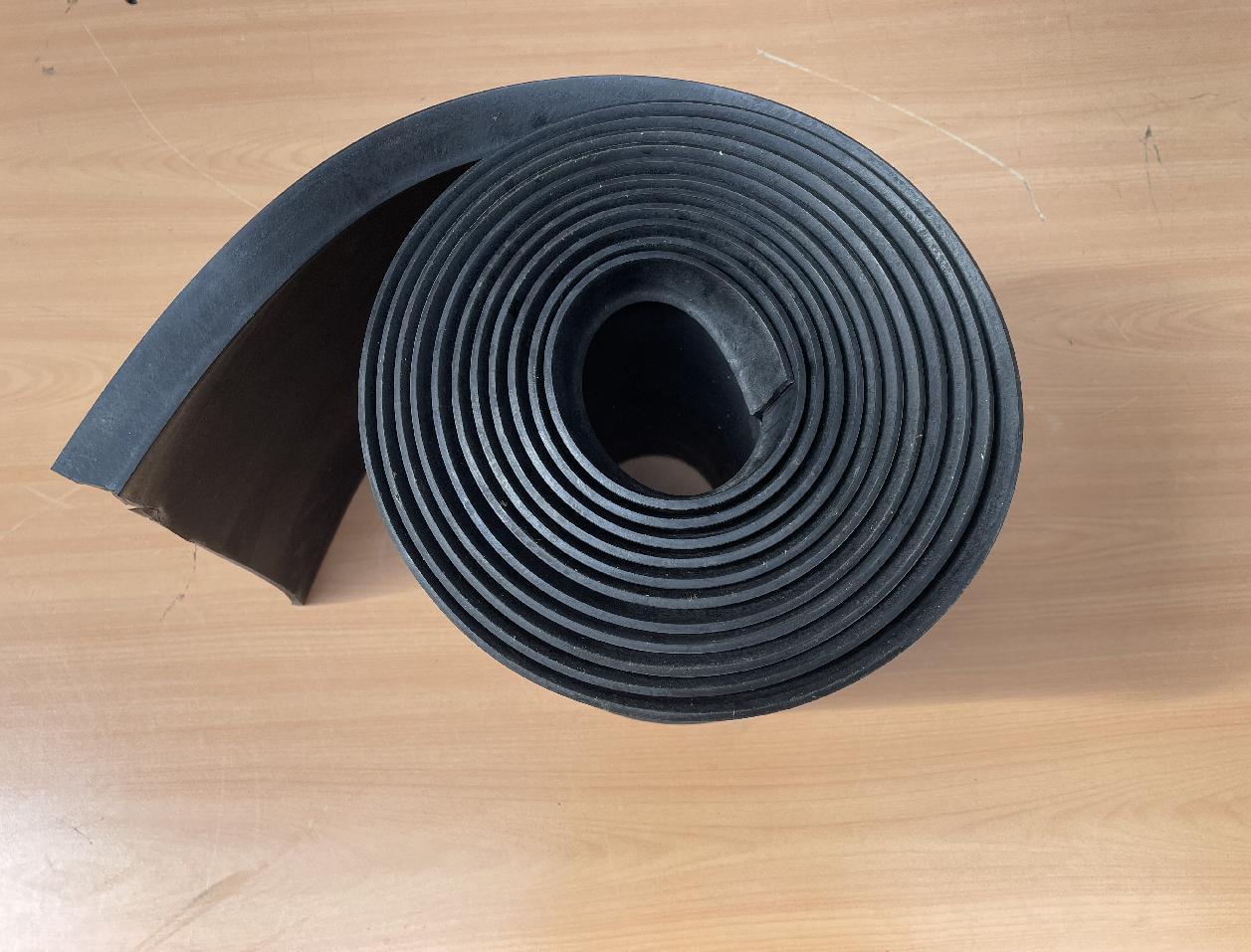

Part Number 3188528: SPLASH GUARD
Part Number 3188528: SPLASH GUARD
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 2216646 | L-PROFILE | 1.7 |
| 3 | 3188530 | SPLASH GUARD | 4.6 |
| 4 | 3188529 | SPLASH GUARD | 1.200 |
| 5 | 3188528 | SPLASH GUARD | 1.7 |
| 6 | 3188531 | SPLASH GUARD | 5 |
| 7 | 2251612 | ANGLE | 0.34 |
| 11 | 1570137 | BOLD WITH WASHER | 0.01 |
| 12 | 3008570 | HOLDER SIDE SIGNS | 0.12 |
| 13 | 1067553 | FENDER WASHER | 0.01 |
| 14 | 2254693 | HEXAGON SOCKET BUTTON HEAD SCREW | 0.01 |
| 15 | 0437743 | HEXAGON NUT M8 | 0.0 |
| 16 | 1925033 | WASHER 6 | 0.005 |
| 18 | 1923998 | HEXAGON NUT M6 | 0.005 |
