Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT Parts (Grove )
6245000210 (Grove AT 422 )
Also known as:
6585000176, 06585000176, 006585000176
Parts for Grove AT 422, Figure 6245000210:

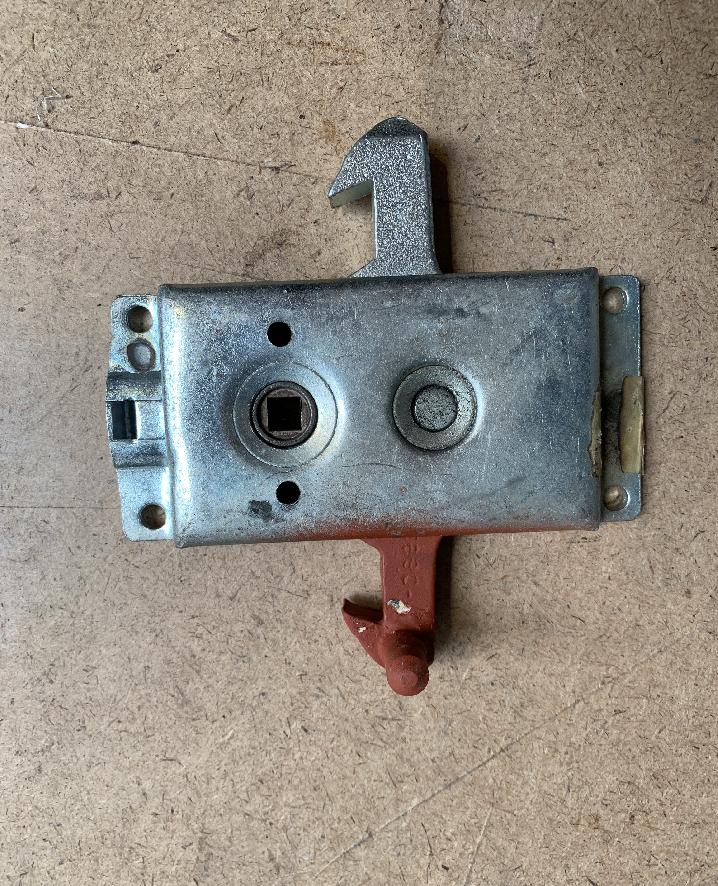

Part Number 6585000176: SLIDING DOOR LOCK - REWORK
Pos nr Part number Description Weight in kg
1 6245000207 CAB WELD
2 6860000196
3 6860000195
4 6511000442 HANDLE WELD. 2
5 6184001371 BRACKET
6 7308000194 YOKE
7 7772000177 ROLLER, NYLATRON
8 7498000310 DOOR GLASS
9 7498000309 SIDE GLASS 1
10 7498000328 GLASS SKYLIGHT
11 7498000311 WINDSHIELD GLASS
12 7242000016 PLUG BUTTON
13 7246001131 CABLE ASSY
14 7498000307 WINDOW ASSY 2
15 7926000644 VALVE ASSEMBLY - DUAL BRAKE 5.670
16 7498000308 REAR WINDOW ASSY
17 7683000075 AIR THROTTLE PEDAL
18 6511000057 LOCK HANDLE REWORK MK FRM 7511
19 7083000008 WIPER BLADE 2
20 7033000127 WIPER ARM
21 7576000418 WIPER MOTOR KIT 2.00
22 7033000081 ARM, CRANK
23 7576000017 KIT, ADAPTER
24 7810000866 KIT, PIVOT SHAFT
25 7102140650 BOLT HEX
26 7950140050 LOCK WASHER 0.006
27 6637003061
28 7790100853 SCREW, SELF-TAPPING
30 7576000311 BELT, SEAT 1.238
31 7112140550 CAP SCREW,1/4" -20 N. C. X 5/8"
32 7112151250 CAPSCREW
33 7950150050 LOCK WASHER 5116" RED 0.002
34 7950150141 WASHER 5/16" I.D. 0.24
35 7099000374 SCREW OVAL HD MACHINE
36 7660101100 NUT, HEX
37 7950100050 #10 DIA HELICAL 0.005
38 7690051245 PIN, ROLL
39 4126400156 SPACER
40 7660140000 NUT. HEX 114 0.004
41 6348000138 HOLDER, MANUAL
42 7300000220 CLAMP
43 7312000095 CLIP, PIN
44 7308000083 CLE VIS
45 7690151600 PIN, CLEVIS
46 7660160230 NUT, HEX JAM
47 7660101130 NUT, HEX
48 7111100810 SCREW, MACHINE
49 7101100610 SCREW, MACHINE
50 7581000186 LIGHT, DOME
51 7111140610 SCREW, MACHINE
52 6637031005
53 7025000015 HORN HI-TONE 5
54 7242000019 PLUG, 5/16" BUTTON
56 7242000017 PLUG BUTTON
57 7822000080 SLEEVE
58 6543001689 HOSE
59 7850000102 TIE, CABLE (NATURAL)
60 7326000032 COLUMN - STEER ING
61 7970001353 STEER ING WHEEL. ASSEMBLY
62 7872000583 TURN SIGNAL SWITCH 1
63 7926001867 STEERING VALVE 6.120
64 4174400009 PANEL
66 4174400034 CLAMP BRACKET
67 7300000070 CLAMP, TUBING 0.155
68 7112160850 REPLACED BV 7115160850
69 7950160050 LOCK WASHER 3/8" PEG 0.080
70 7950140161 WASHER, 1/4" I.D. FLAT WIDE 0.024
71 7504000031 GRILL
72 6637007005 CLIP BEADING 1.524 LONG
73 6200059104 BUSHING
152 7242000014 BUTTON, PLUG
153 7242000012 BUTTON, PLUG
154 7790100871 SCREW 0.001
155 7101100410 SLOT RMS #10-32UNFX0.5 GI
157 7950100141 #10 DIA PLAIN W 0.004
162 6705006820 PLATE
163 6705011363 COVER PLATE
166 7709000034 PLUG, DOT
167 7950160141 WASHER, 3/8" PLAIN NARROW 0.004
168 6512000341 HARNESS ASSY-WIPER
169 6637043008 HOULDING
200 6245000209 CAB ASSY INCLUDES
201 7638000052 SHOCK MOUNTI
202 7949000148 FLATWASHER
203 7112203050 HEX HD BOLT
204 7660201600 LOCKNUT, HEX
205 7850000046 STRAP, GROUND
206 7660160000 NUT, HEX 0.018
313 6585000175 LATCH
316 6671000234 SLIDE
320 6184001378 BRACKET
326 2140400015 CAB DOOR WELD.
332 6585000176 SLIDING DOOR LOCK - REWORK 0.700
335 6671000267 SLIDE
336 7059000266 BAR
338 7511000429 GRAB HANDLE
339 7511000428 GRAB HANDLE
352 6637020005 PROTECTOR EDGE
357 7099000154 SCREW, CABINET
358 7949000191 WASHER,
