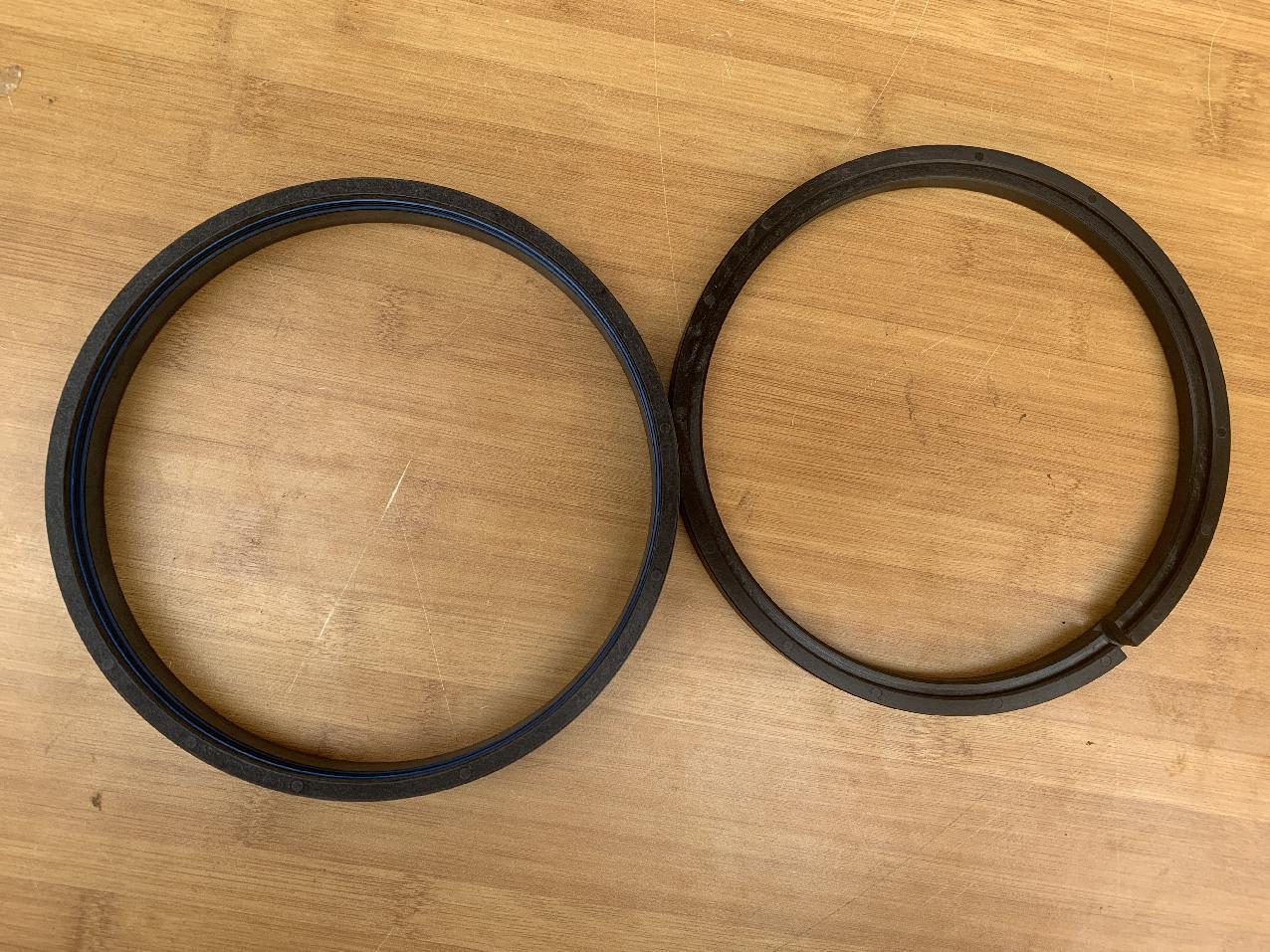

Grove 7794000607 - SEAL ASSY-7.50" PISTON HYD DES

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7794000607, 07794000607, 007794000607

Parts for Grove AT 422, Figure 6372003198:
Part Number 7794000607: SEAL ASSY-7.50" PISTON HYD DES

Pos nr	Part number	Description	Weight in kg
1	9752100667	SEAL KIT	1.580
1	6372003198	COMPLETE ASSY
1	6372003196	BARREL
2	6701000301	PISTON
3	7785160802	SET SCREW	0.011
4	7794000607	SEAL ASSY-7.50" PISTON HYD DES
5	7753000725	RING - 7.50" GUIDE LOCK
6	7755361609	RING, BACK-UP	0.005
7	7754000150	0-RING, LOW TEMPERATURE	0.100
8	6910010567	SPACER
9	6768002054	ROD
10	6372002851	HEAD
11	7753000274	CYL HEAD WEAR R	0.084
12	7754000142	LOW TEMP "O" RI
13	7755441609	B/U RING
14	7794000555	SEAL, BUFFER	0.050
15	7794000626	SEAL, DEEP ZROD	0.100
16	7753000161	RING, WIPER	0.030
17	7926001976	VALVE ASSEMBLY	0.907
18	7440000000	GREASE NIPPLE	0.006
19	7709000028	PLUG 721-FSO-1/4"	0.160
20	7709000031	PLUG O RING	0.032
103	7199001699	BUSHING
201	7199000994	BUSHING 3.5" DIA X 6.75"
