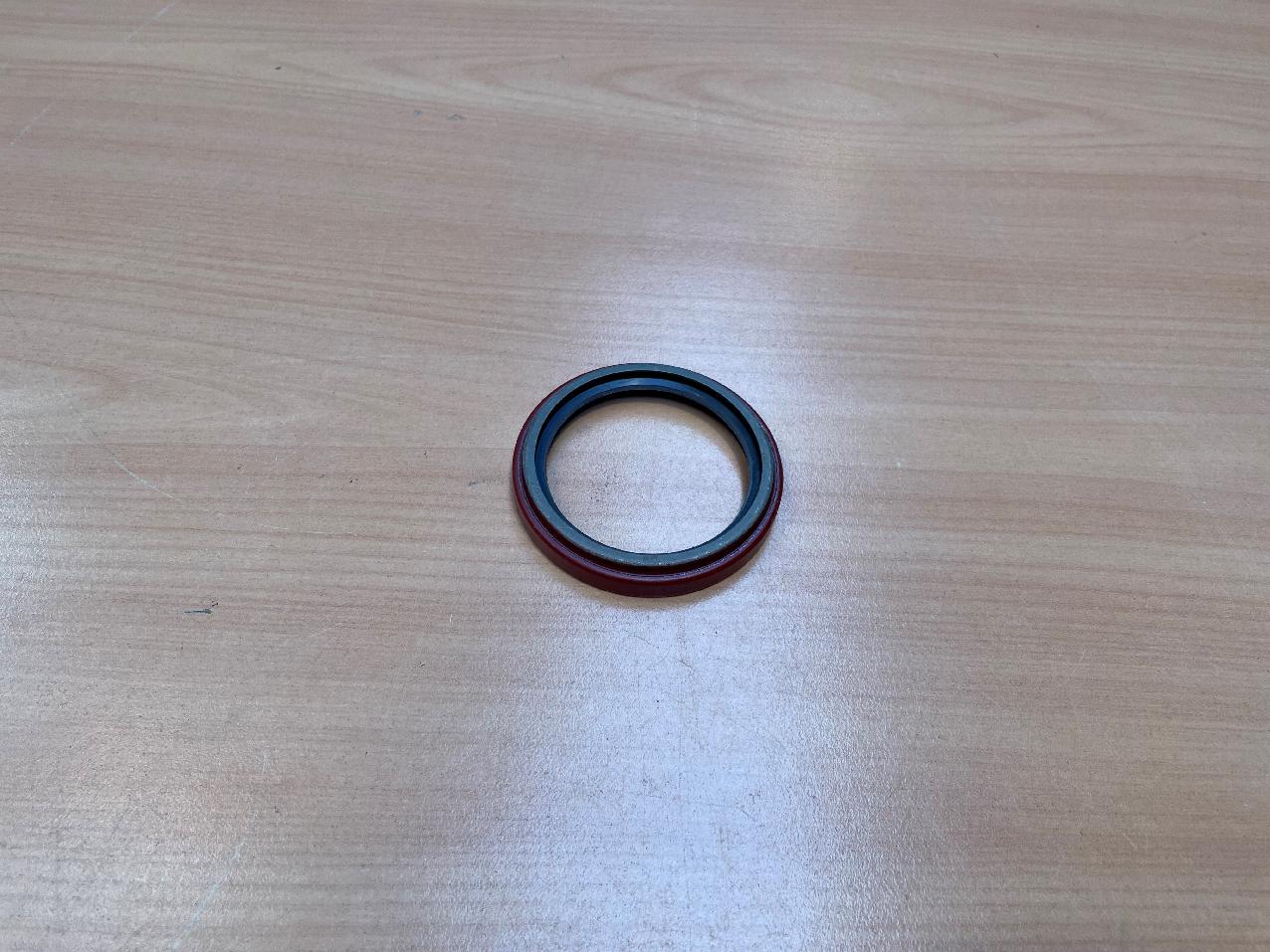

Grove 9049101656

Pos nr	Part number	Description	Weight in kg
1	9049101648	SEAL	0.580
1	9049101544	CUP, BEARING
1	9049101650	PLUG
1	9049101938	LOCKWIRE
1	9049101955	WEDGE	0.230
2	9049101546	RING, ADJUSTING
2	9049101560	STUD, MEDIUM
2	9049101956	CAGE
3	9049101647	BUSHING	0.228
3	9049101545	PIN, COTTER
3	9049101651	STUD
3	9049101937	CAP SCREW,
4	9049102266	NUT	0.091
4	9049101894	SHIM,
4	9049101912	BREATHER
4	9049101926	CAP SCREW,
5	9049101577	CAP SCREW,
5	9049101652	FLATWASHER
5	9049101920	PLUG, DRAIN
5	9049101952	CAP SCREW,
6	9049101682	COTTER PIN
6	9049101700	PLUG
6	9049101953	CAP SCREW,
7	9049101685	NUT
7	1000000000	MAJOR "SPECIAL" LEGEND
7	9049101498	SOREW, THRUST
8	9049103926	NUT
8	9049101497	NUT, JAM	0.030
8	9049101936	LINK
9	9049101855	PLUG
9	9049101886	DIFF. HOUSING & CAP ASSY
9	9049101935	HING, SNAP
10	9049101602	DOWEL
10	9049101684	CAPSCREW,
10	9049101922	SHIELD, DUST - L.H.
12	9049103595	CAPSCREW	0.230
12	9049101554	WASHER .66" I.D.
12	9049101924	SHIELD, DUST
13	9049101893	GEAR
13	9049101925	SHIELD, DUST
14	9049103961	KIT
15	9049101945	PLUNGER
16	9049101694	CONE, BEARING	2.100
17	9049103992	SEAL	0.040
17	9049101543	CONE, BEARING
17	9049101696	CUP, BEARING	1.198
18	9049101693	CONE, BEARING	1.460
19	9049101583	CAGE ASSEMBLY
19	9049101695	CUP, BEARING	0.830
20	9049101582	CUP, BEARING
20	9049101661	STUD
21	9049101581	CONE, BEARING
21	9049101698	O-RING
21	9049101950	LOCKPLATE
22	9049101596	CONE, BEARING
22	9049101678	CAP SCREW,
23	9049101898	CAPSCREW,
23	9049101954	WEDGE ASSEMBLY
24	9049101580	GASKET	0.010
25	9049101599	WASHER,
26	9049101687	STUD	0.350
26	9049101940	PLUG
27	9188100171	SPRING	0.190
27	9049101579	SEAL,OIL	0.140
27	9049101674	CAPSCREW,	0.280
28	9049101578	COVER & SEAL ASSY
28	9049101917	HUB&CUP
29	9049101910	YOKE
30	9049101598	BEARING
31	9049101600	RING, RETAINING	0.006
31	9049101705	WASHER, LOCK	0.006
32	9049101907	PINION
33	9049101908	PINION WASHER
34	9049101909	GEAR
35	9049101540	WASHER, THRUST
35	9049101679	PIN
36	9049101656	SEAL	0.050
36	9049101538	SPIDER
37	9049101697	OIL SEAL	1.620
38	9049101680	BUSHING	0.140
39	9049101657	BUSHING	0.286
40	9049101681	NUT
41	9049101683	NUT
42	9049101848	WASHER
43	9049101847	WASHER, THRUST
44	9049101673	WASHER, THRUST	0.166
48	9049101669	SHIM,
49	9049101914	KNUCKLE, STEERING
51	9049101918	DRUM, BRAKE
54	9049101654	U JOINT ASSY	1
55	9049101665	CAP
56	9049101915	CAP
57	9049101849	SHAFT	3
59	9049101844	GEAR-20T
60	9049101846	GEAR, PINION
63	9049101676	YOKE, TIE ROD END
64	9049101677	YOKE, TIE ROD END
65	9049102254	PLUG	0.066
67	9049101934	PIN, ANCHOR
IL	9049101923	SHIELD, DUST - R.H.

Pieces	Part nr.	Description	Brand
- +	J 00338-18	BOLT	PPM
- +	K 02378-29	SHUTOFF/COCK	PPM
- +	A 00338-56	BOLT	PPM
- +	7790100871	SCREW	Grove
- +	9904101217	SCREW	Grove
- +	N 09417-47	REFLECTOR	PPM
- +	M 32432-64		PPM
- +	9049101656	SEAL	Grove
