Figures in which the part appears:
3319228-ETL (Grove GMK 2035 COMPACT AIR-CONDITIONING SYSTEM ROOF)
3322497-ETL (Grove GMK 3050 V3 )
3319228-ETL (Grove GMK 5100 )
3319228-ETL (Grove GMK 5200 )
3325363-ETL (Grove GMK 6300 )
3322497-ETL (Grove GMK 3050 V3 )
3319228-ETL (Grove GMK 5100 )
3319228-ETL (Grove GMK 5200 )
3325363-ETL (Grove GMK 6300 )
Also known as:
3322501, 03322501, 003322501
3322501, 03322501, 003322501
EVAPORATOR - Part 3322501 for Grove cranes
Fits these models: Grove GMK 2035, Grove GMK 3050 V3, Grove GMK 5100, Grove GMK 5200, Grove GMK 6300

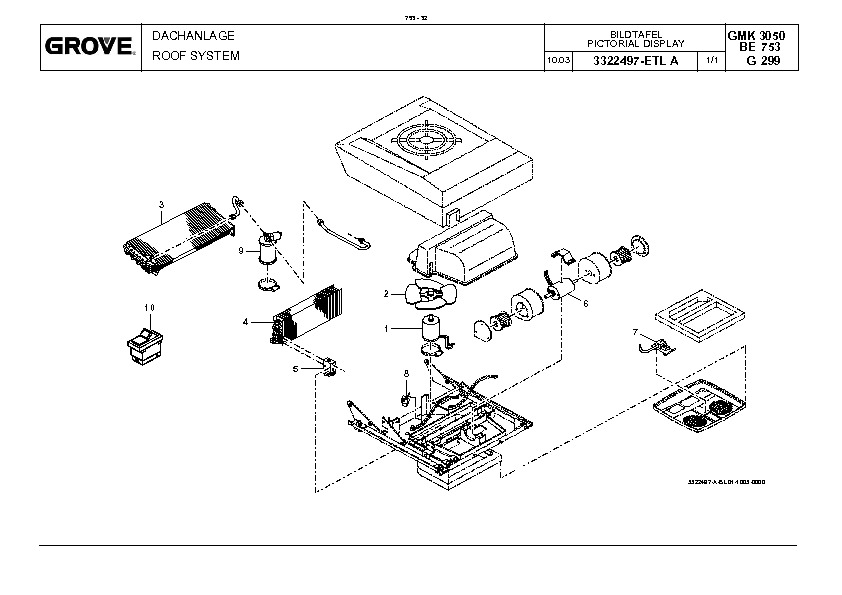

Figure 3322497-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3322498 | MOTOR | 1.62 |
| 2 | 3322499 | FAN WHEEL | 0.001 |
| 3 | 3322500 | CONDENSOR SYSTEM | |
| 4 | 3322501 | EVAPORATOR | |
| 5 | 3322502 | RELIEF VALVE | 0.001 |
| 6 | 3322503 | MOTOR | |
| 7 | 3322504 | CONTROL UNIT | 0.31 |
| 8 | 3322505 | RELAY | |
| 9 | 3322506 | DRYER | 1.064 |
| 10 | 3322884 | TRIPLE PESSURE SWITCH | 0.08 |
