Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3319519-U, 3319519U, 03319519U, 003319519U, 03319519-U, 003319519-U
3319519-U, 3319519U, 03319519U, 003319519U, 03319519-U, 003319519-U
Parts for Grove GMK 3050 V3, Figure 3323318-ETL:

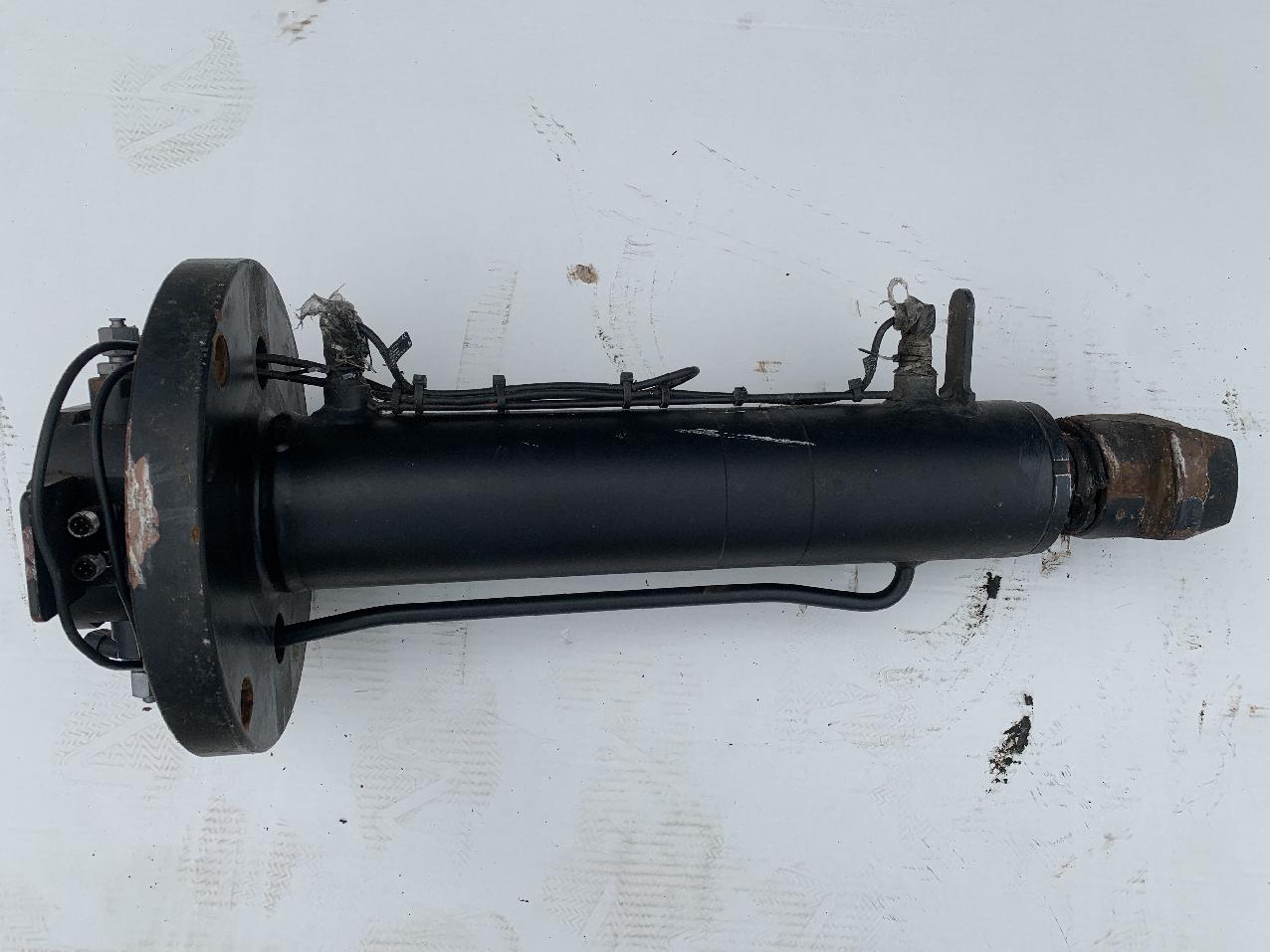

Part Number 3319519-U: LIFTING CYLINDER
Part Number 3319519-U: LIFTING CYLINDER
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 3319519-U | LIFTING CYLINDER | ||
| 1 | 1147043 | GROOVED BALL-BEARING | 0.09 |
| 2 | 1922137 | GROOVED BALL-BEARING | 0.05 |
| 3 | 3042188 | V-RING | 0.005 |
| 4 | 3324647 | SPRING | |
| 5 | 2316250 | SPRING BOX | 0.001 |
| 6 | 3042186 | SPRING BOX | |
| 7 | 3324512 | POTENTIOMETER | 0.18 |
| 7 | 3316415 | CURRENT COLLECTOR | 0.02 |
| 7 | 3316418 | SLIP RING MODULE | 0.089 |
| 7 | 3316401 | DRIVE | 0.018 |
| 7 | 3316416 | GEAR WHEEL, COMPLETE | 0.03 |
| 7 | 3324504 | SLIP RING MODULE | 0.120 |
| 7 | 3324648 | SLIP RING BODY CPL. | |
| 8 | 3042189 | V-RING | 0.005 |
| 9 | 3324653 | CABLE |
