Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
2155910046 (Grove RT 530E )
TMS 500-2 (Grove RT 770E )
Also known as:
7246100048, 07246100048, 007246100048
Parts for Grove RT 530E, Figure 2155910046:

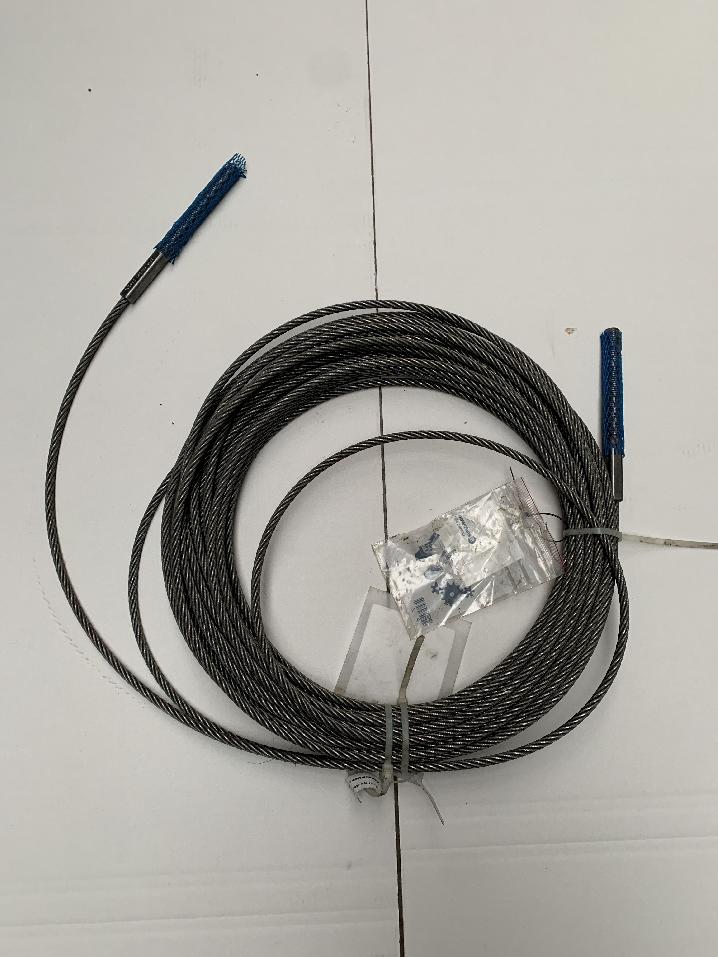

Part Number 7246100048: CABLE, EXTENSION
Pos nr Part number Description Weight in kg
7755021002 O-RING 2.320
7755910002 O-RING 755 ID 0.006
6069100000 BEARING
6069100001 BEARING
7671100081 TEFLON PLUG
7069100031 BEARING
6069000445 BEARING 0.320
7671100121 REAR UPPER WEAR PAD
7671100117 FRONT LOWER WEAR PAD
7671100119 PAD, REAR UPPER WEAR 0.360
1 2155910048 SECTION, BASE 1326
2 2155910050 SECTION, INNER MID 1421.939
3 2155910052 SECTION, OUTER MID 766
4 2155910006 SECTION, FLY AND NOSE 766
5 6372100048 CYLINDER ASSEMBLY - 6.31" TELESC 844.700
6 7949000236 WASHER 0.027
7 7110220606 CAP SCREW
8 7671100116 PAD ASSY, FRONT LOWER 0.500
9 6671001149 PAD, SIDE WEAR 0.280
10 4159910000 SHIM 0.070
11 7115150950 CAP SCREW
12 6671001148 PAD, WEAR 0.227
13 7111160807 SCREW, MACHINE
14 6671000166 PAD, WEAR 0.064
15 4159910001 SHIM
16 4159901578 PLATE, KICKBACK
17 7115150550 CAP SCREW
18 4159910002 PLATE, KICKBACK
19 4159901577 HOLDER, WEAR PAD
20 7671100118 PAD ASSY, REAR UPPER 0.862
21 7671100120 PAD ASSY, REAR UPPER 0.240
22 6659000889 WASHER, OFFSET
23 7949000317 WASHER I.D.
24 7115170650 CAPSCREW
25 2159910000 ANCHOR
26 2159910001 ANCHOR
27 2159910083 MOUNT, SHEAVE
28 7440000000 FITTING, GREASE 1/8"NPT 0.006
29 4159901579 PLATE, KEEPER 0.03
30 6689002074 PIN
31 7690051610 COTTER PIN
32 6718100000 SHEAVE 1.896
33 7115163250 CAPSCREW 0.082
34 7246100048 CABLE, EXTENSION 17.010
35 7660220008 NUT, HEX
36 7110180605 CAP SCREW
37 2159910078 SHAFT 1.770
38 7949000333 WASHER 0.050
39 6718100012 SHEAVE, 2 GROOVE 2.001
40 6200200812 BUSHING
41 6718100013 SHEAVE, 3 GROOVE
42 7115163450 CAPSCREW
43 6689100028 PIN
44 7246100049 CABLE, RETRACTION 3.200
45 7660200008 NUT, HEX 0.033
46 2155910039 MOUNT, SHEAVE 14.430
47 2159910004 FOOT
48 6671000177 PAD, WEAR 0.080
49 6718100006 SHEAVE ASSY, 5 GROOVE 13.636
50 4155910024 SHAFT, SHEAVE
51 4140900205 RETAINER
52 6949001174 PLATE, SPACER 0.050
53 7246003554 CABLE, EXTENSION 15.876
54 2159910055 SLED
55 7118269650 CAP SCREW
56 7660260008 NUT, HEX
57 7115221650 CAP SCREW,
58 7115151250 CAPSCREW
59 6199100017 BUSHING
60 4159910034 ANGLE, MOUNTING
61 4159910051 ANGLE, MOUNTING -
62 4159910036 ANGLE, MOUNTING
63 4159910046 PLATE, COVER
64 7689000053 SAFETY PIN
65 7447161001 ADAPTER, STRAIGHT
66 7118181050 1/2 NC X 1 1/4 0.047
67 7949000235 WASHER 1/2 ID 0.006
68 6199100016 BUSHING
69 7110260606 CAP SCREW 0.208
70 7949000360 WASHER 1" I.D.
71 4159910033 ANGLE, MOUNTING 0.214
72 4159910142 PLATE, KEEPER
73 7118160850 CAP SCREW
74 6705006974 PLATE
75 7115180850 BOLT, HEX 1/2"-13 HC X 1" - GPO S 0.042
76 7115140650 BOLT, HEX 1/4"-20 HC X 3/9 - GPO S 0.036
77 7950140141 WASHERI/IT" HARROW 0.050
78 7950150141 WASHER 5/16" I.D. 0.24
79 7950150050 LOCK WASHER 5116" RED 0.002
* Selected parts are automatically added to your RFQ list *
7246100048 Grove RT 530E CABLE, EXTENSION
