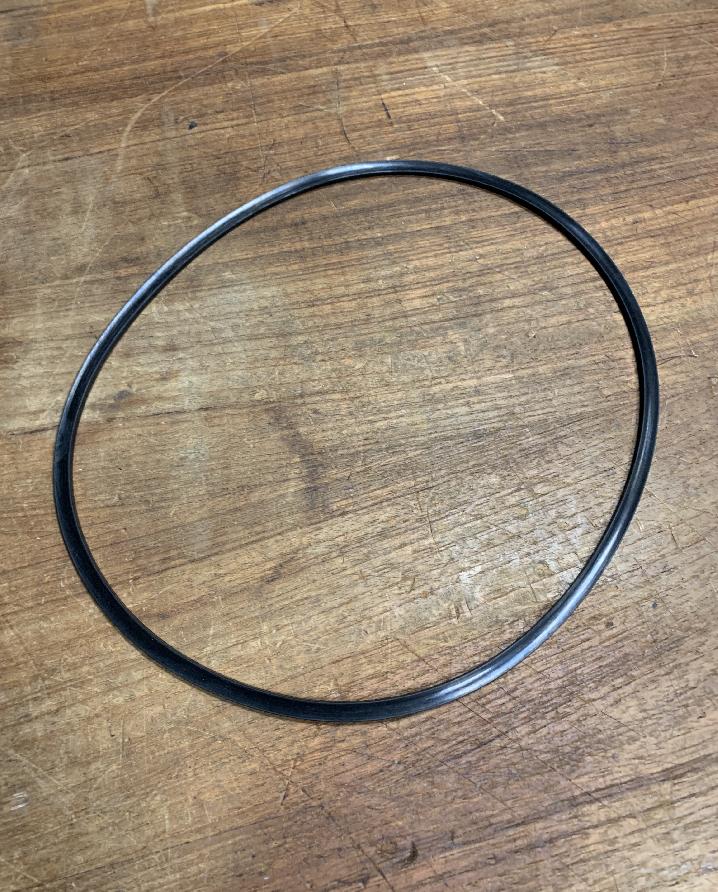

Grove 7755446609 - RING, BACK-UP

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7755446609, 07755446609, 007755446609

Parts for Grove RT 530E, Figure 6372100185:
Part Number 7755446609: RING, BACK-UP

Pos nr	Part number	Description	Weight in kg
	7373000012	KIT, SEAL	1.20
	7755021002	O-RING	2.320
	7755906002	O-RING	0.045
	7755904002	O-RING	0.005
	7755912002	O-RING 924 ID	0.005
	7755916002	O-RING	0.002
	7199001037	BUSHING
	7199001699	BUSHING
	7199100008	LINER BUSHING	1.942
	7199100009	LINER BUSHING
1	6372100184	PISTON
2	6701000970	PISTON, 9" CYLINDER	14
3	7099000378	SET SCREW	7.940
4	7794000577	SEAL, PISTON	0.540
5	7754000163	O-RING, LOW TEMPERATURE	0.016
6	7755365609	RING, BACK-UP	0.006
7	6768100108	ROD
8	6372004173	HEAD, 9" CYLINDER
9	7753000307	RING, WEAR	0.140
10	7754000166	O-RING, LOW TEMPERATURE	0.034
11	7755446609	RING, BACK-UP	0.014
12	7753000477	WEAR RING CYL H	0.080
13	7794000544	SEAL, BUFFER	0.050
14	7794000642	SEAL, DEEP Z ROD	0.030
15	7753000299	RING, WIPER	0.068
16	7926003679	VALVE ASSEMBLY - HOLDING	5.830
17	7709000028	PLUG, SAE #4
18	7709000026	PLUG, PIPE	0.163
19	7440000000	FITTING, GREASE 1/8"NPT	0.006
20	7709000031	PLUG, SAE #6	0.032
22	7910014249	TUBE
23	7115182450	CAPSCREW
24	7949000235	WASHER 1/2 ID	0.006
25	7447161601	STRAIGHT THREAD	0.280
26	7709000029	O RING PLUG	5.440
