Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
GMK (Grove GMK )
2159810225 (Grove RT 540E )
Also known as:
7722100100, 07722100100, 007722100100
Parts for Grove RT 540E, Figure 2159810225:
Part Number 7722100100: PUMP ASSEMBLY - PISTON
Pos nr Part number Description Weight in kg
7755025002 O-RING 0.005
7755014002 O-RING 0.005
7755018002 O-RING 739 ID 0.005
7755011002 O-RING 301 ID 0.005
7755021002 O-RING 0.023
7755906002 O-RING 0.045
7755910002 O-RING 755 ID 0.006
7755904002 O-RING 0.005
7755912002 O-RING 924 ID 0.005
7755916002 O-RING 0.002
3 7029100003 ALTERNATOR (145AMP) 6.900
5 2159810022 MOUNT, TRANSMISSION 8.820
6 2159810023 MOUNT, TRANSMISSION 5.110
8 7722100101 PUMP ASSEMBLY - GEAR 15.440
9 7722100100 PUMP ASSEMBLY - PISTON 79.545
10 7949000236 WASHER 0.027
11 7115221650 CAP SCREW,
12 7949000263 WASHER, HARDENED 0.010
13 7126192650 CAP SCREW, M10 X 100MM HEX HEAD
15 7300000035 CLAMP, HOSE 0.036
16 8596902521 HOSE 1.000
17 7300000006 HOSE CLAMP 0.027
18 7445121253 ELBOW, 90 DEGREE 0.260
21 7649000059 NIPPLE, HOSE 0.096
22 7447080428 ADAPTER, STRAIGHT MALE
24 7649000062 NIPPLE 0.54
25 7126191550 CAP SCREW, M10 X 40MM HEX HEAD 0.035
26 7447040430 ELBOW, 90 DEGREE 0.263
27 7445161217 REDUCING CONNECTOR
28 7888000045 TEE 0.539
29 7447040403 ELBOW, 90 DEGREE 0.064
30 7447040428 ADAPTER, STRAIGHT
31 7447040434 TEE, MALE RUN
32 7300000167 CLAMP, HOSE 0.023
33 7300000013 COLLAR 0.020
34 7447121201 STR ADAPTER - M 0.171
35 7447040601 ADAPTER, STRAIGHT 0.070
37 7561101503 HOSE ASSY, 1/4"I.D. X 15" LO 0.270
38 7950160050 LOCK WASHER 3/8" PEG 0.080
39 7108161450 BOLT 0.029
40 7445060651 UNION, STRAIGHT
41 7926000557 VALVE, DRAIN 0.034
42 7949000235 WASHER 1/2 ID 0.006
43 7126211454 CAP SCREW, M12X35 SOCKET HEAD
44 7445120809 ADAPTER, 45 DEGREE SWI VEL
45 7949000259 WASHER 0.100
46 7118201450 SCREW|5/8-11UNCX1.75 G8 0.090
47 8596902527 HOSE|HEATER 3/8 ID X 11/1 3.918
48 7542506663 HOSE 0.104
49 7126211253 HHCS|M12X25 8.8 FLZN 4017 0.040
54 7561102003 HYD HOSE ASSY|1/4" ID STR-90 1.020
55 7649000061 NIPPLE, HOSE 0.036
57 8596902529 HOSE 0.001
59 7013000405 ADAPTER 0.054
60 7445040453 ELBOW, 90 DEGREE 0.056
61 7649000042 HOSE NIPPLE 0.130
62 8596931250 HOSE 11.922
63 7300000121 CLAMP, HOSE 0.006
65 7447121003 90 DEG ELBOW 0.320
66 7447121001 ADAPTER, STRAIGHT
67 7447121233 90 DEG ELBOW
68 7561503852 3/4 HOSE ASSY ORFS STR X 90 1.24
70 7561203017 HOSE 0.560
73 7013100047 ADAPTER,ORB TO HOSE BAAB 20-16
74 4159810082 SUPPORT, PUMP
76 7755222002 O-RING 0.005
77 7115181450 CAP SCREW, 0.113
81 6794001567 GASKET 0.004
83 4159810060 PLATE, MOUNTING
84 7437100220 MESH Y-STRAINER 0.500
85 7926002329 VALVE, SHUT-OFF
86 7445080650 BUSHING, REDUCER 0.500
87 7300000246 CLAMP, TUBING
88 7126191250 CAP SCREW, ML 0X25 - 8.8
89 7951190210 LOCKWASHER 10MM 0.005
90 7661190003 NUT, HEX 0.011
91 8596902528 HOSE 0.100
92 7850000237 TIE, CABLE (BLACK) 0.013
93 7300100024 CLAMP, T-BOLT 1.75" NOM 0.09
94 7300100022 CLAMP, T-BOLT 3"
100 6978100956 ELECTRICAL SYSTEM INSTALLATION
101 7543109361 HOSE ASSY, 1114" HYDRAULIC
102 7447121208 45 DEG ELBOW - 0.390
103 6794100011 GASKET-SAE C 2-BOLT 0.016
104 6794100012 GASKET 0.174
105 6794000650 GASKET
107 7445160850 BUSHING, REDUCER
108 7447060830 ELBOW, 90 DEGREE MALE 0.128
109 7447201628 STRAIGHT THREAD ADAPTER 0.324
110 4159810078 BRACKET
111 7542508463 HOSE 0.180
112 7447161201 ADAPTER, STRAIGHT
113 7447161203 ELBOW, 90 DEGREE 0.539
114 4159810083 SUPPORT, PUMP
115 7126191253 CAP SCREW, ML X 25MM HEX HEAD 0.026
300 9414101679 FILTER,OIL 0.85 / 0.78
301 9414101755 FILTER, PRIMARY FUEL 0.9
302 9414101756 FILTER, SECONDARY FUEL 0.960
303 9414101764 BELT, DRIVE 0.34
304 9414101731 STARTER, 12 VOLT 11.360
* Selected parts are automatically added to your RFQ list *

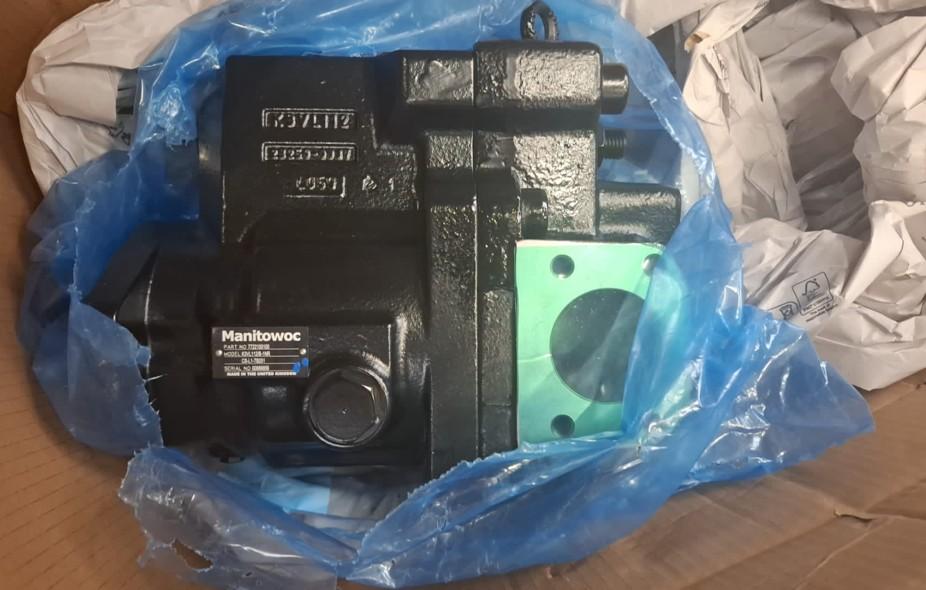

7722100100 Grove GMK PUMP ASSEMBLY - PISTON
