Grove 7722100101 - PUMP ASSEMBLY

Pos nr	Part number	Description	Weight in kg
	7755025002	O-RING	0.005
	7755014002	O-RING	0.005
	7755018002	O-RING 739 ID	0.005
	7755011002	O-RING 301 ID	0.005
	7755021002	O-RING	0.023
	7755906002	O-RING	0.045
	7755910002	O-RING 755 ID	0.006
	7755904002	O-RING	0.005
	7755912002	O-RING 924 ID	0.005
	7755916002	O-RING	0.002
3	7029100003	ALTERNATOR (145AMP)	6.900
5	2159810022	MOUNT, TRANSMISSION	8.820
6	2159810023	MOUNT, TRANSMISSION	5.110

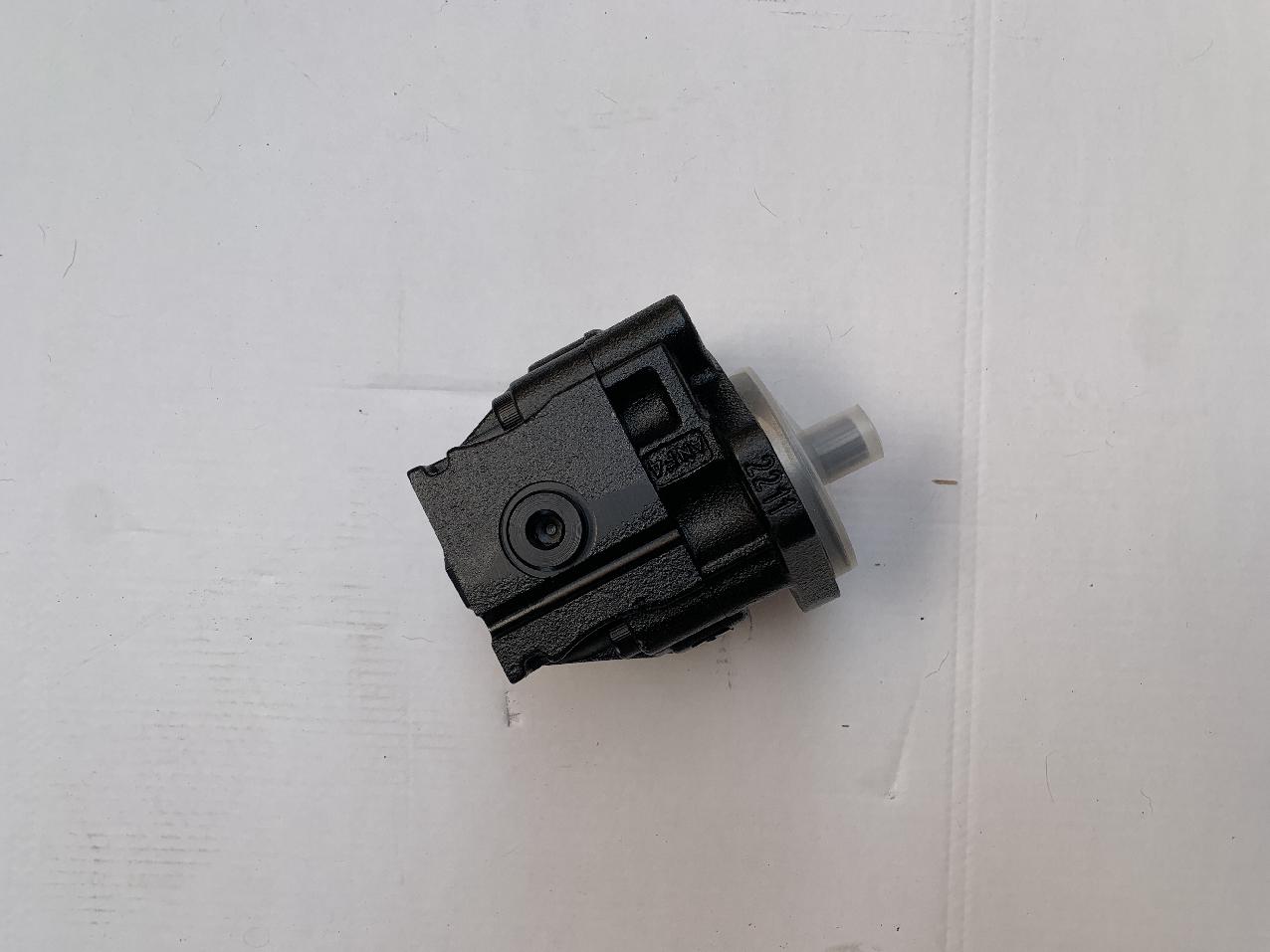

8	7722100101	PUMP ASSEMBLY - GEAR	15.440
9	7722100100	PUMP ASSEMBLY - PISTON	79.545
10	7949000236	WASHER	0.027
11	7115221650	CAP SCREW,
12	7949000263	WASHER, HARDENED	0.010
13	7126192650	CAP SCREW, M10 X 100MM HEX HEAD
15	7300000035	CLAMP, HOSE	0.036
16	8596902521	HOSE	1.000
17	7300000006	HOSE CLAMP	0.027
18	7445121253	ELBOW, 90 DEGREE	0.260
21	7649000059	NIPPLE, HOSE	0.096
22	7447080428	ADAPTER, STRAIGHT MALE
24	7649000062	NIPPLE	0.54
25	7126191550	CAP SCREW, M10 X 40MM HEX HEAD	0.035
26	7447040430	ELBOW, 90 DEGREE	0.263
27	7445161217	REDUCING CONNECTOR
28	7888000045	TEE	0.539
29	7447040403	ELBOW, 90 DEGREE	0.064
30	7447040428	ADAPTER, STRAIGHT
31	7447040434	TEE, MALE RUN
32	7300000167	CLAMP, HOSE	0.023
33	7300000013	COLLAR	0.020
34	7447121201	STR ADAPTER - M	0.171
35	7447040601	ADAPTER, STRAIGHT	0.070
37	7561101503	HOSE ASSY, 1/4"I.D. X 15" LO	0.270
38	7950160050	LOCK WASHER 3/8" PEG	0.080
39	7108161450	BOLT	0.029
40	7445060651	UNION, STRAIGHT
41	7926000557	VALVE, DRAIN	0.034
42	7949000235	WASHER 1/2 ID	0.006
43	7126211454	CAP SCREW, M12X35 SOCKET HEAD
44	7445120809	ADAPTER, 45 DEGREE SWI VEL
45	7949000259	WASHER	0.100
46	7118201450	SCREW\|5/8-11UNCX1.75 G8	0.090
47	8596902527	HOSE\|HEATER 3/8 ID X 11/1	3.918
48	7542506663	HOSE	0.104
49	7126211253	HHCS\|M12X25 8.8 FLZN 4017	0.040
54	7561102003	HYD HOSE ASSY\|1/4" ID STR-90	1.020
55	7649000061	NIPPLE, HOSE	0.036
57	8596902529	HOSE	0.001
59	7013000405	ADAPTER	0.054
60	7445040453	ELBOW, 90 DEGREE	0.056
61	7649000042	HOSE NIPPLE	0.130
62	8596931250	HOSE	11.922
63	7300000121	CLAMP, HOSE	0.006
65	7447121003	90 DEG ELBOW	0.320
66	7447121001	ADAPTER, STRAIGHT
67	7447121233	90 DEG ELBOW
68	7561503852	3/4 HOSE ASSY ORFS STR X 90	1.24
70	7561203017	HOSE	0.560
73	7013100047	ADAPTER,ORB TO HOSE BAAB 20-16
74	4159810082	SUPPORT, PUMP
76	7755222002	O-RING	0.005
77	7115181450	CAP SCREW,	0.113
81	6794001567	GASKET	0.004
83	4159810060	PLATE, MOUNTING
84	7437100220	MESH Y-STRAINER	0.500
85	7926002329	VALVE, SHUT-OFF
86	7445080650	BUSHING, REDUCER	0.500
87	7300000246	CLAMP, TUBING
88	7126191250	CAP SCREW, ML 0X25 - 8.8
89	7951190210	LOCKWASHER 10MM	0.005
90	7661190003	NUT, HEX	0.011
91	8596902528	HOSE	0.100
92	7850000237	TIE, CABLE (BLACK)	0.013
93	7300100024	CLAMP, T-BOLT 1.75" NOM	0.09
94	7300100022	CLAMP, T-BOLT 3"
100	6978100956	ELECTRICAL SYSTEM INSTALLATION
101	7543109361	HOSE ASSY, 1114" HYDRAULIC
102	7447121208	45 DEG ELBOW -	0.390
103	6794100011	GASKET-SAE C 2-BOLT	0.016
104	6794100012	GASKET	0.174
105	6794000650	GASKET
107	7445160850	BUSHING, REDUCER
108	7447060830	ELBOW, 90 DEGREE MALE	0.128
109	7447201628	STRAIGHT THREAD ADAPTER	0.324
110	4159810078	BRACKET
111	7542508463	HOSE	0.180
112	7447161201	ADAPTER, STRAIGHT
113	7447161203	ELBOW, 90 DEGREE	0.539
114	4159810083	SUPPORT, PUMP
115	7126191253	CAP SCREW, ML X 25MM HEX HEAD	0.026
300	9414101679	FILTER,OIL	0.85 / 0.78
301	9414101755	FILTER, PRIMARY FUEL	0.9
302	9414101756	FILTER, SECONDARY FUEL	0.960
303	9414101764	BELT, DRIVE	0.34
304	9414101731	STARTER, 12 VOLT	11.360

Pieces	Part nr.	Description	Brand
- +	3317923	PIN HOUSING	Grove
- +	7722100101	PUMP ASSEMBLY - GEAR	Grove
