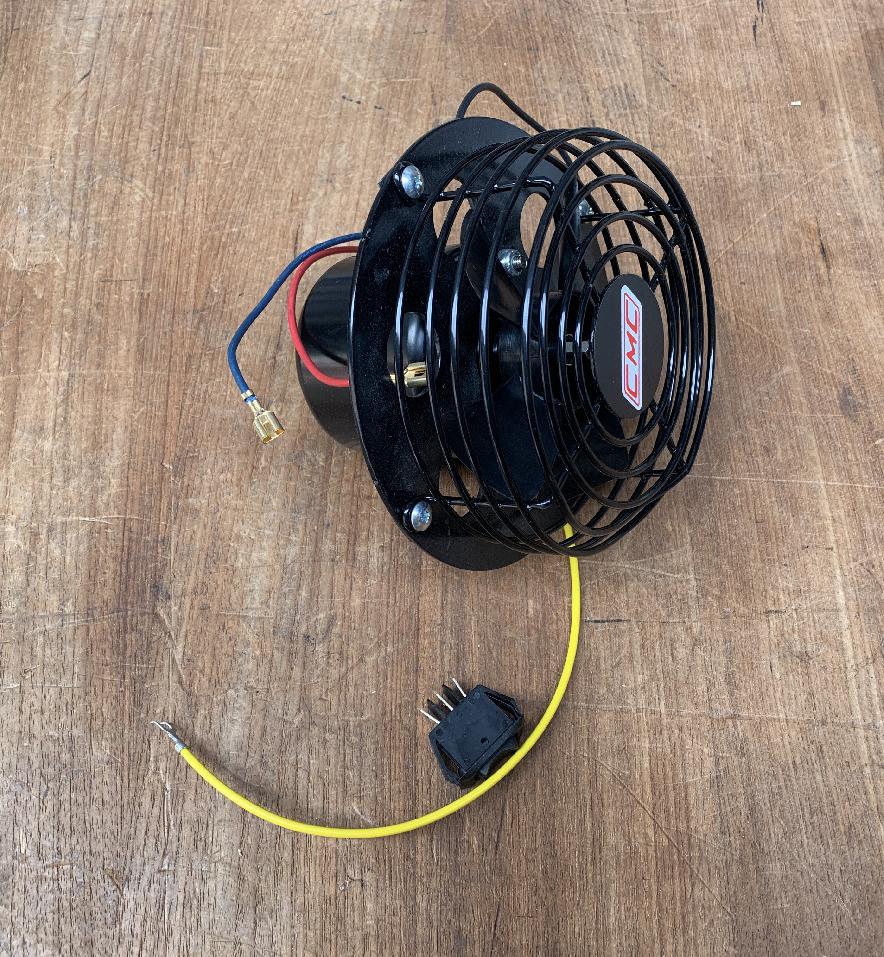

Grove 7425000007 - FAN, DEFROSTER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7425000007, 07425000007, 007425000007

Parts for Grove RT 540E, Figure 6245101334:
Part Number 7425000007: FAN, DEFROSTER

Pos nr	Part number	Description	Weight in kg
	9425100009	147	0.040
1	6245101332	CONSOLE ASSEMBLY * FRONT
2	7245100069	COVER, CONSOLE	12.177
3	6184100007	BRACE
4	7661110003	NUT, HEX	0.100
5	7951110210	SPRINGWASHER	0.001
6	7258001452	CAP #8	0.005
7	7951110014	WASHER, 4MM I.D.	1.590
8	1374648	HEXAGON SOCKET HEAD CAP SCREW M4	0.052
9	7126171253	CAP SCREW, M8 X 25MM HEX HEAD	0.090
10	7951170210	LOCKWASHER 8 MM	0.002
11	7951170014	WASHER, 8MM I.D. FLAT	0.050
12	7659190020	NUT, RETAINING 8 X 1.25	0.010
13	7258001451	CAP, 1/4"	0.040
14	7121151401	SCREW, M6X35 LONG SLOTTED PAN
15	7949001186	WASHER, BLACK NYLON	0.005
16	7659190019	NUT, M6 X 1.00 RETAINING
17	7425000007	FAN, DEFROSTER	1.3
18	7126191253	CAP SCREW, ML X 25MM HEX HEAD	0.026
19	7951190210	LOCKWASHER 10MM	0.005
20	7951190014	FLATWASHER 1OMM I.D.	0.005
21	7659190033	NUT, RETAINING M10 X 1.50
22	7661170003	HEX NUT 8MM X 1	0.005
23	6245101003	MOUNT, BRACKET MODULE
